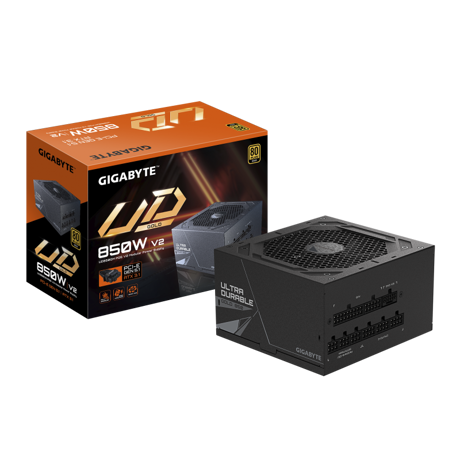

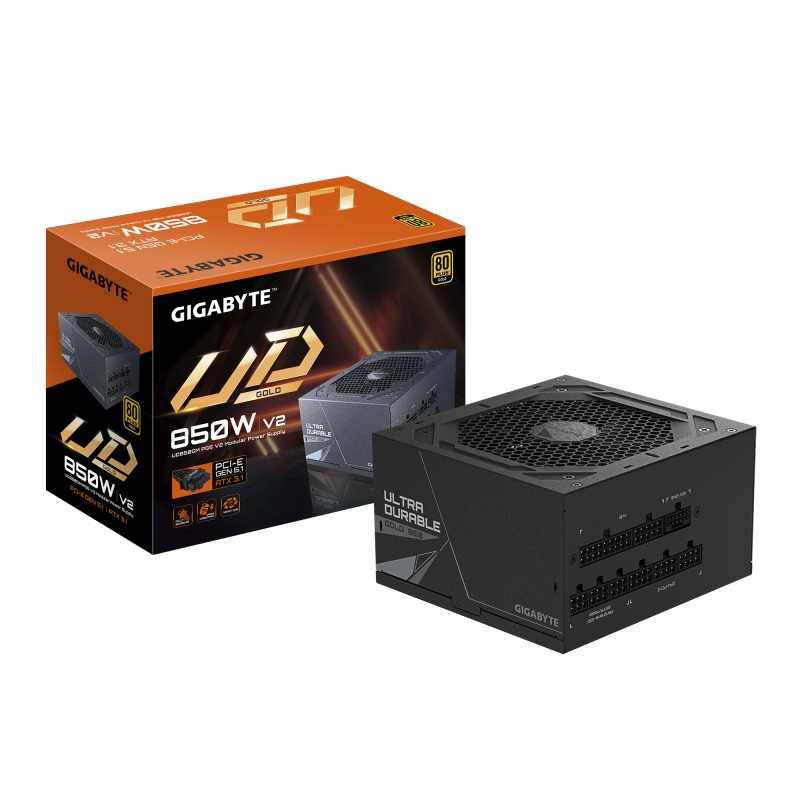

GIGABYTE UD850GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm

GIGABYTE UD850GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

12 cm

Product colour

Black

On/off switch

Yes

Warranty period

10 year(s)

Package height

211 mm

Package type

Box

Package width

618 mm

Package depth

269 mm

Package weight

2.56 kg

Bearing technology

HYB

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Purpose

PC

Mean time between failures (MTBF)

100000 h

Power supply unit (PSU) form factor

ATX

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

8

Motherboard power cable length

61 cm

Cabling type

Fully-Modular

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

CPU power cable length

60 cm

PCI Express connector

Yes

Peripheral (Molex) power connectors (4-pin)

3

Floppy drive power connector

1

PCI Express power connectors (16-pin)

1

PCI Express power cable length

70 cm

SATA power cable length

150,600 mm

Number of EPS connectors

2

Peripheral (Molex) power cable length

150,500 mm

Combined power (-12V)

850 W

Combined power (+3.3V)

105 W

Combined power (+5V)

105 W

Max output current (+12V)

0.3 A

Efficiency

90%

Input current

12 - 6 A

Power factor

0.9

Hold time

16 ms

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Total power

850 W

Combined power (+12V)

850 W

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Max output current (-12V)

0.3 A

Power Factor Correction (PFC) type

Active

Combined power (+5Vsb)

15 W

Max output current (+5Vsb)

3 A

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Depth

140 mm

Height

86 mm

Weight

2.4 kg

Width

150 mm
