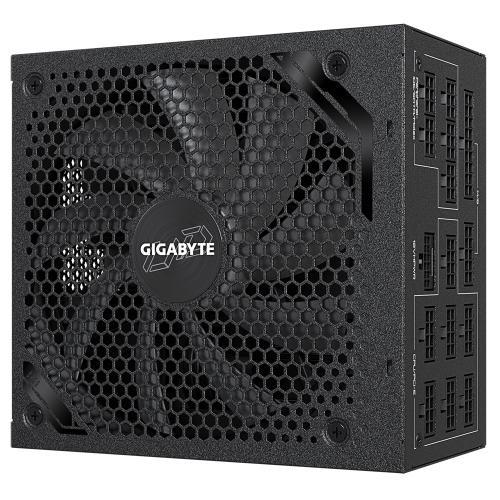

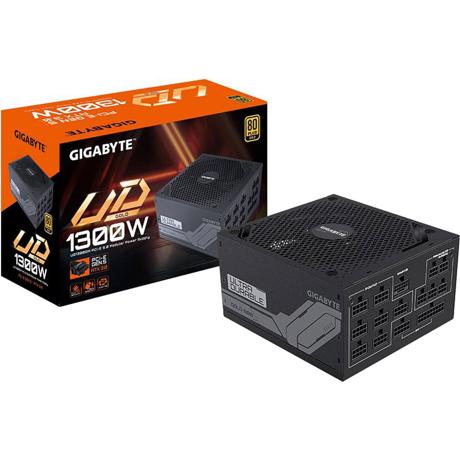

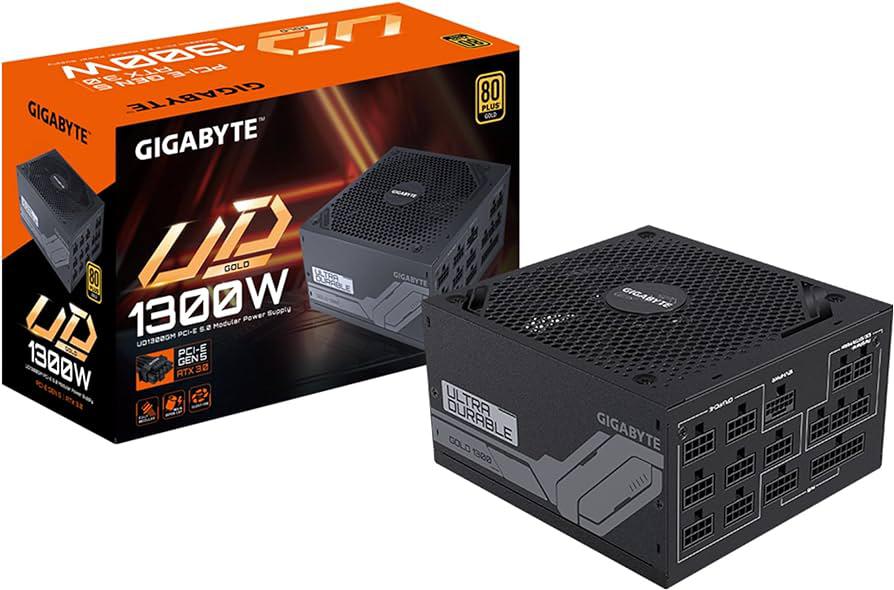

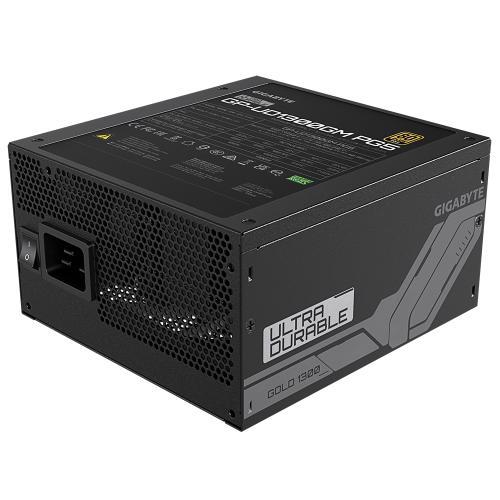

Sursa GIGABYTE UD1300GM PG5 80 PLUS GOLD

Sursa GIGABYTE UD1300GM PG5, Active PFC (>0.9 typical), 1300W 80 PLUS GOLD, 140mm double ball bearing fan

Compliance certificates

CCC, CE, Federal Communications Commission (FCC), RoHS

Illumination

No

Fan diameter

12 cm

Number of fans

1 fan(s)

Fan location

Top

Warranty period

5 year(s)

Cable tie(s) included

Yes

Cables included

CPU, PATA, Peripheral (Molex), SATA

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

Purpose

PC

Mean time between failures (MTBF)

100000 h

Motherboard power connector

20+4 pin ATX

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

ATX power connector (20+4 pin)

Yes

PCI Express connector

Yes

Number of SATA power connectors

8

Motherboard power cable length

61 cm

Cabling type

Fully-Modular

Number of PATA power connectors

3

PCI Express power connectors (16-pin)

1

Peripheral (Molex) power connectors (4-pin)

2

PCI Express power cable length

70 cm

SATA power cable length

150,600 mm

Peripheral (Molex) power cable length

200,600 mm

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Hold time

16 ms

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Combined power (+3.3V)

125 W

Combined power (+5V)

125 W

Input current

12 - 6 A

Maximum input current (@110V)

6 A

Maximum input current (@220V)

12 A

Total power

1300 W

Combined power (+12V)

1300 W

Max output current (+12V)

108.3 A

Efficiency

90%

Power Factor Correction (PFC) type

Active

Combined power (+5Vsb)

17.5 W

Max output current (+5Vsb)

3.5 A

Max output current (+3.3V)

25 A

Max output current (+5V)

25 A

Combined power (-12V)

3.6 W

Max output current (-12V)

0.3 A

Depth

160 mm

Width

150 mm

Height

86 mm
