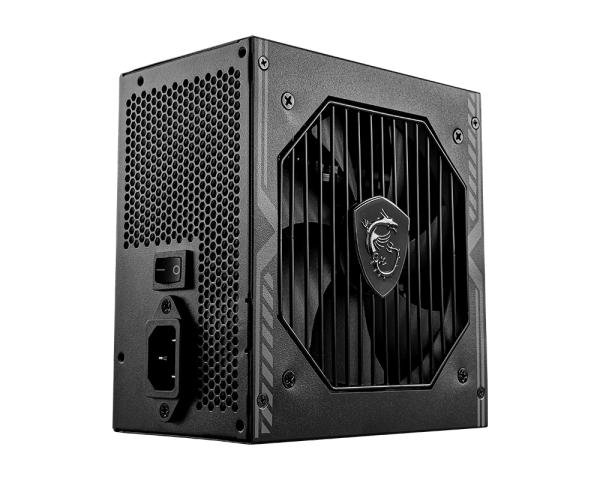

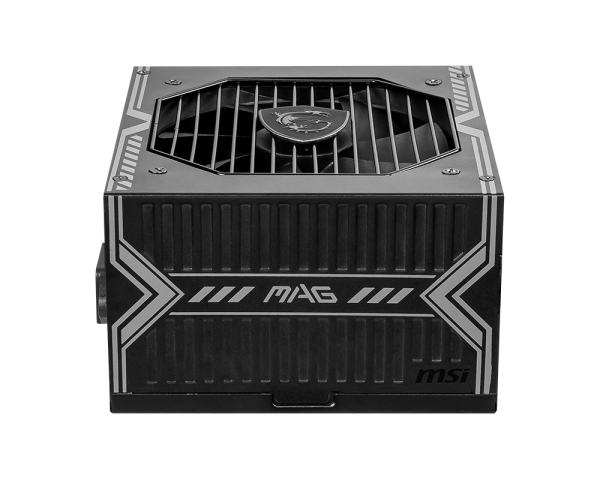

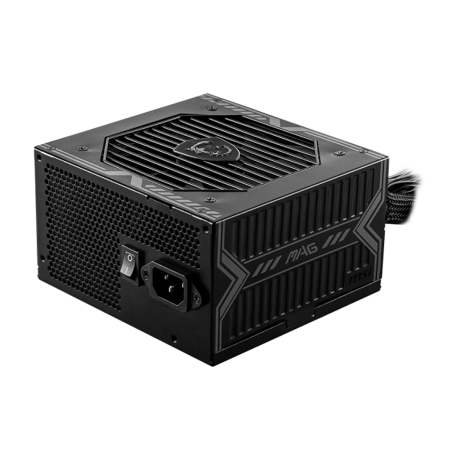

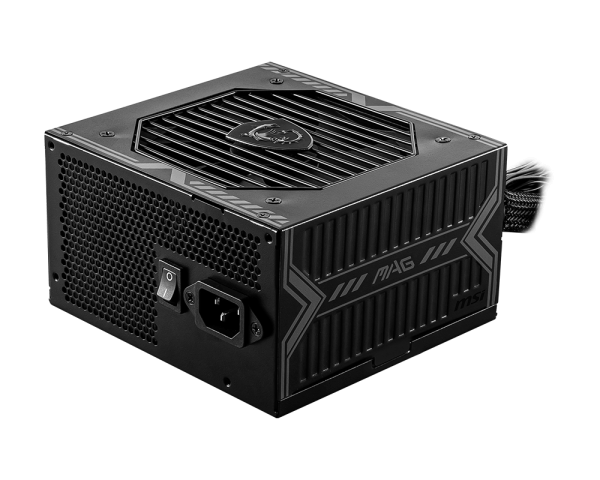

Sursa MSI MAG A750BN PCIE5 80 PLUS Bronze (up to 85%), fan size 120mm, Active PFC 750W

Sursa MSI MAG A750BN PCIE5 80 PLUS Bronze (up to 85%), fan size 120mm, Active PFC 750W

Number of fans

1 fan(s)

Illumination

No

Fan diameter

12 cm

On/off switch

Yes

Package depth

140 mm

Package height

86 mm

Package width

150 mm

Purpose

PC

80 PLUS certification

80 PLUS Bronze

Power supply unit (PSU) form factor

ATX

Motherboard power connector

24-pin ATX

ATX Power connector (24-pin)

Yes

EPS power connector (4+4 pin)

Yes

Cabling type

Non-Modular

Floppy drive power connector

1

PCI Express power connectors (16-pin)

1

Peripheral (Molex) power connectors (4-pin)

2

Number of SATA power connectors

5

PCI Express power connectors (6+2 pin)

2

Combined power (+3.3V)

120 W

Combined power (+5V)

120 W

Maximum input current (@110V)

10 A

Maximum input current (@220V)

5 A

AC input voltage

100 - 240 V

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Power protection features

Over current, Over power, Over voltage, Short circuit

Power Factor Correction (PFC) type

Active

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Total power

750 W

Combined power (+12V)

750 W

Max output current (+12V)

62.5 A
