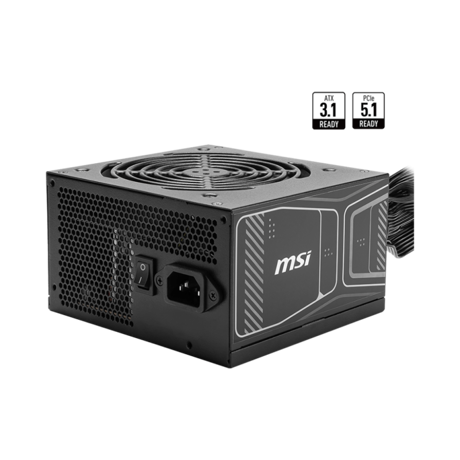

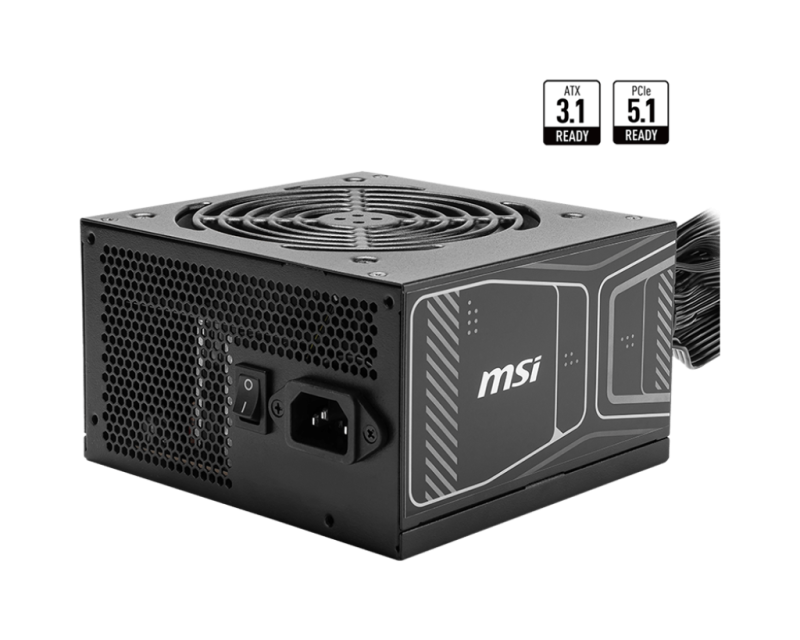

Sursa MSI MAG A750GN PCIE5 750W 80 PLUS GOLD, Active PFC, non modulara, Protectii OCP / OVP / OPP / OTP / SCP

Sursa MSI MAG A750GN PCIE5 750W 80 PLUS GOLD, Active PFC, non modulara, Protectii OCP / OVP / OPP / OTP / SCP

Illumination

No

Fan diameter

12 cm

Cooling type

Active

Number of fans

1 fan(s)

On/off switch

Yes

Package type

Box

Purpose

PC

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Bearing technology

Sleeve

Peripheral (Molex) power connectors (4-pin)

4

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

55 cm

EPS power connector (4+4 pin)

Yes

CPU power connector (4+4 pin)

Yes

Cabling type

Non-Modular

SATA power cable length

150,450 mm

PCI Express power connectors (6-pin)

0

PCI Express power connectors (8-pin)

0

PCI Express power connectors (12+4 pin)

0

PCI Express power connectors (12-pin)

0

ATX power connector (20+4 pin)

No

EPS power connector (8-pin)

No

PCI Express power connectors (6+2 pin)

2

ATX Power connector (24-pin)

No

Peripheral (Molex) power cable length

500 mm

Number of SATA power connectors

4

Number of +12V rail(s)

1

Efficiency

80Plus-Gold

Combined power (+5V)

110 W

Max output current (+12V)

0.3 A

Combined power (-12V)

3.6 W

Max output current (-12V)

0.3 A

Total power

750 W

Combined power (+5Vsb)

15 W

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

110 W

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

AC input frequency

47 - 63 Hz

Combined power (+12V)

3.6 W

Maximum input current (@110V)

4.7 A

Maximum input current (@220V)

6.3 A

Width

150 mm

Height

86 mm

Depth

140 mm

PSU-Power

501W-750W

Modular

No
