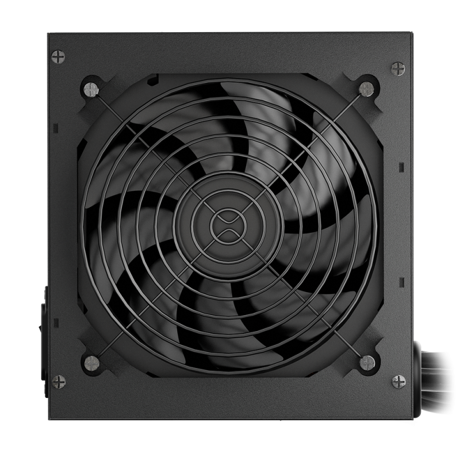

Sursa NJOY Synergy 750W 80+ White, Active PFC, non modulara, ATX, Protectii OVP / UVP / SCP / OPP

Sursa NJOY Synergy 750W 80+ White, Active PFC, non modulara, ATX, Protectii OVP / UVP / SCP / OPP

Certification

CE, RoHS

Product colour

Black

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

12 cm

Fan location

Top

Master (outer) case gross weight

1.76 kg

Master (outer) case height

195 mm

Products per master (outer) case

10 pc(s)

Master (outer) case net weight

16.7 kg

Master (outer) case width

533 mm

Master (outer) case length

538 mm

ATX version

2.31

80 PLUS certification

80 PLUS White

Bearing technology

Hydraulic

Purpose

PC

Power supply unit (PSU) form factor

ATX

Cabling type

Non-Modular

Motherboard power connector

20+4 pin ATX

CPU power connector (4+4 pin)

Yes

CPU power cable length

60 cm

Number of SATA power connectors

5

Peripheral (Molex) power connectors (4-pin)

3

PCI Express power connectors (6+2 pin)

2

Motherboard power cable length

50 cm

SATA power cable length

150,450 mm

Peripheral (Molex) power cable length

150,450 mm

Number of EPS connectors

2

Max output current (+3.3V)

24 A

Combined power (+12V)

6 W

Max output current (-12V)

58 A

Efficiency

82%

Max output current (+12V)

0.5 A

Max output current (+5V)

18 A

Combined power (+3.3V)

120 W

Combined power (+5V)

120 W

Power protection features

Over power, Over voltage, Short circuit, Under voltage

Combined power (+5Vsb)

12.5 W

Max output current (+5Vsb)

2.5 A

Power Factor Correction (PFC) type

Active

Total power

750 W

Combined power (-12V)

696 W

AC input voltage

230 V

AC input frequency

50 Hz

Width

145 mm

Height

86 mm

Weight

1.59 kg

Depth

150 mm

Modular

No
