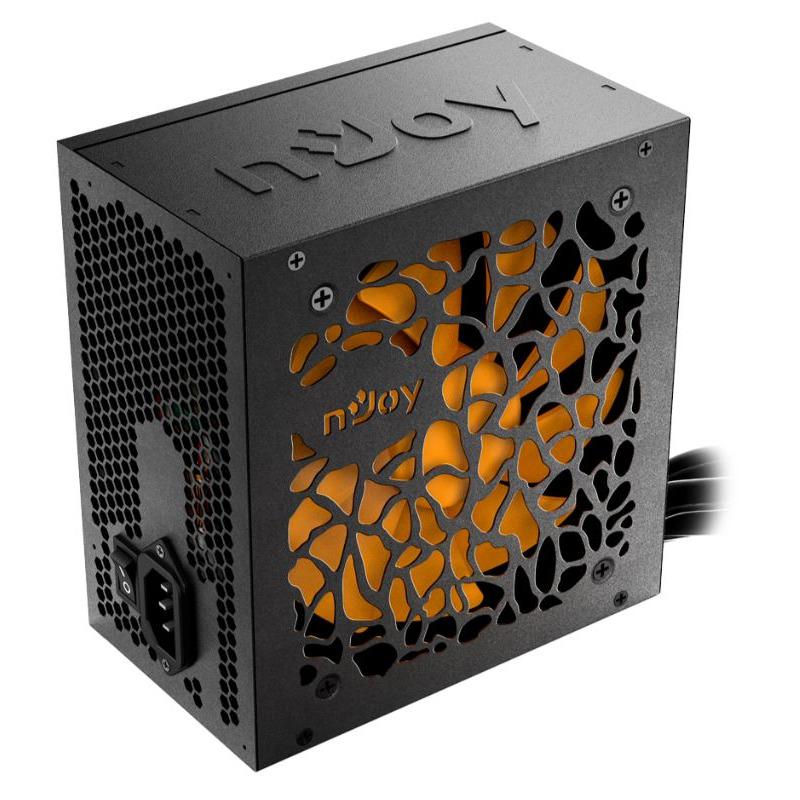

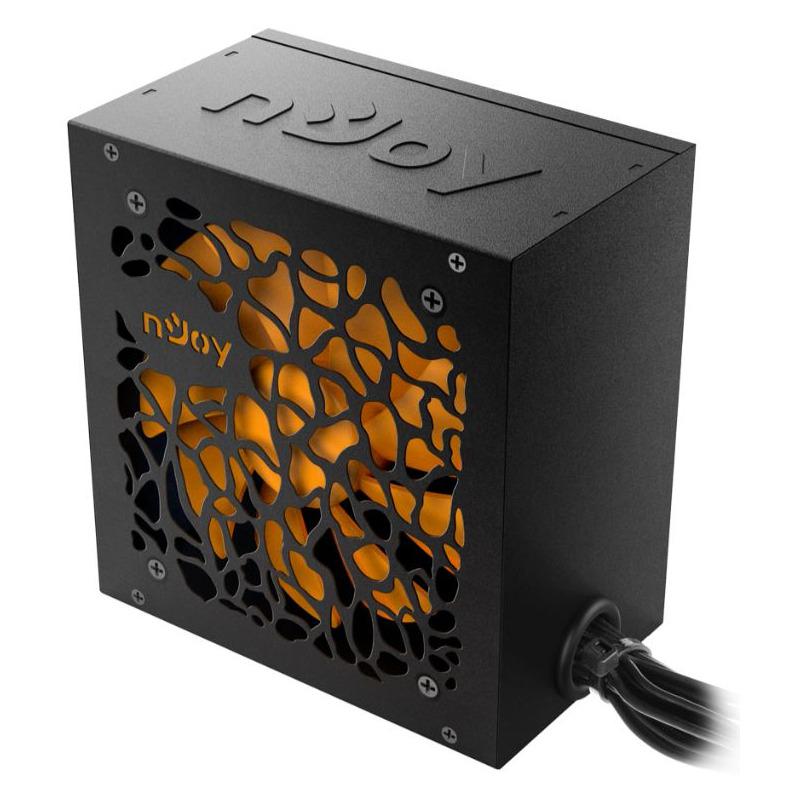

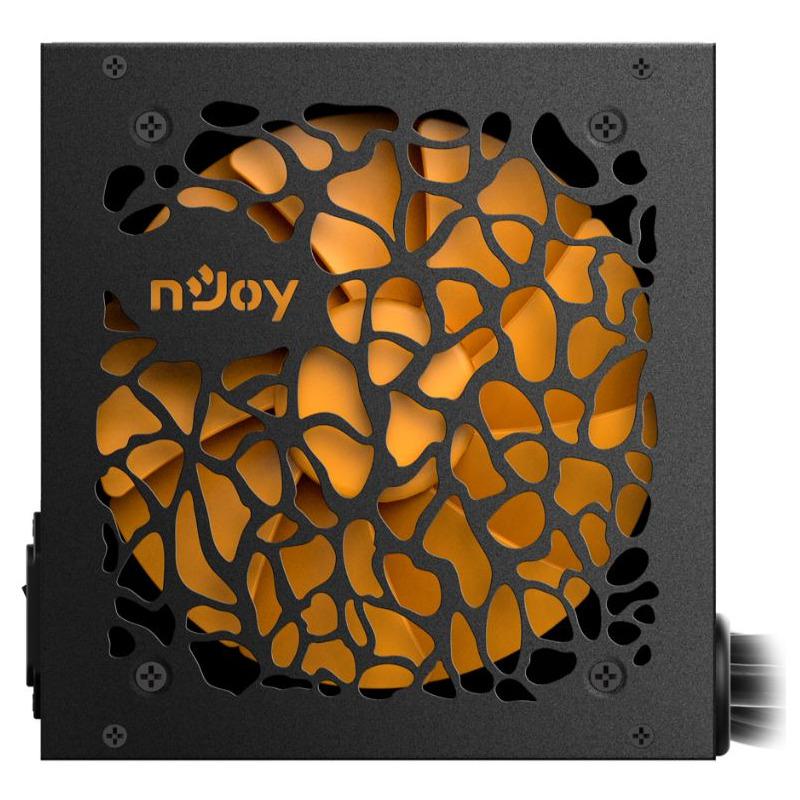

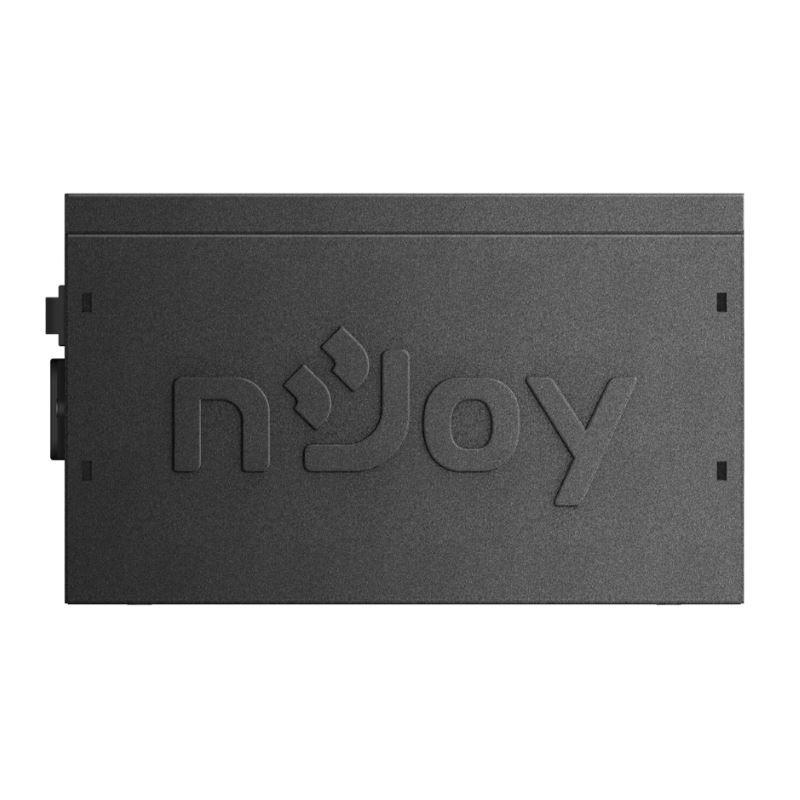

Sursa NJOY TITAN+ 550W 80+ BRONZE

Sursa NJOY TITAN+ 550W 80+ BRONZE, ATX, Active PFC, Protectie OVP / OCP / SCP / OPP, negru

Fan diameter

12 cm

Number of fans

1 fan(s)

Product colour

Black, Orange

On/off switch

Yes

Master (outer) case width

375 mm

Master (outer) case length

525 mm

Master (outer) case net weight

16.5 kg

Master (outer) case gross weight

17.4 kg

Master (outer) case height

265 mm

Products per master (outer) case

10 pc(s)

Parallel processing technology support

CrossFireX, SLI

Power plug type

Type F

Cables included

AC

Package weight

1.65 kg

Package width

240 mm

Package depth

100 mm

Package height

180 mm

ATX version

2.53

Continuous output rated temperature

105 °C

Supported motherboard form factors

ATX

Bearing technology

Hydraulic

80 PLUS certification

80 PLUS Bronze

Purpose

PC

Power supply unit (PSU) form factor

ATX

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

6

Peripheral (Molex) power connectors (4-pin)

4

PCI Express power connectors (6+2 pin)

2

Motherboard power cable length

50 cm

SATA power cable length

400,530,790,920,660 mm

Peripheral (Molex) power cable length

600 mm

PCI Express power cable length

65 cm

Number of EPS connectors

1

Max output current (+12V)

45 A

Total power

550 W

Number of +12V rail(s)

1

Combined power (+3.3V)

90 W

Combined power (+5V)

90 W

Efficiency

88%

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

15 A

Max output current (+5V)

15 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Power protection features

Over current, Over power, Over voltage, Short circuit

Power Factor Correction (PFC) type

Active

AC input frequency

47 - 63 Hz

AC input voltage

230 V

Combined power (+12V)

540 W

Width

150 mm

Height

86 mm

Weight

1.45 kg

Depth

140 mm

Modular

No
