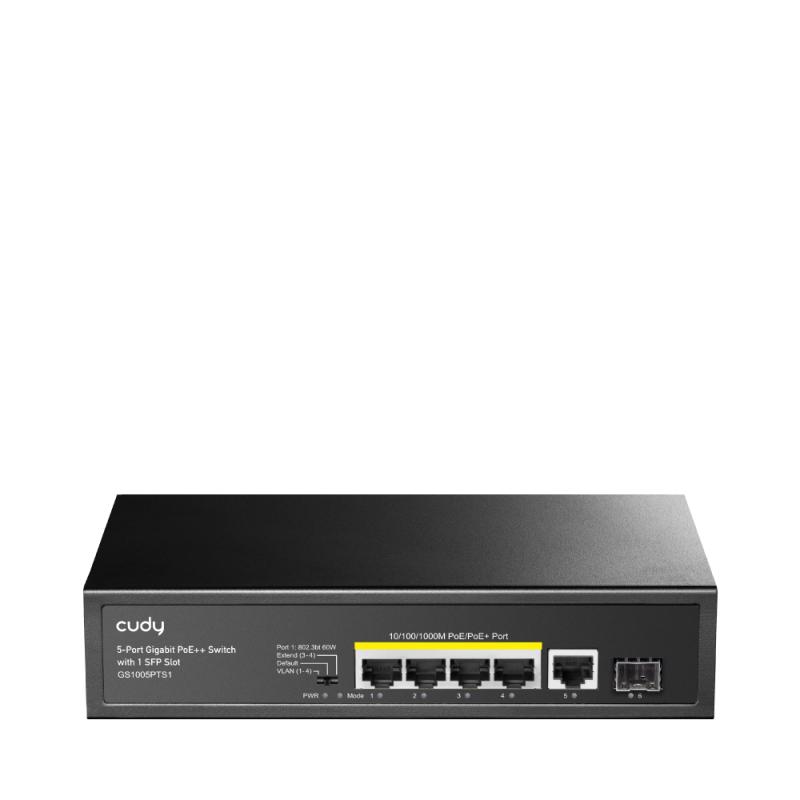

CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af, VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF， Fanless, ±4KV Surge Protection,Watchdog, 120W Internal Power Supply

CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af, VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF， Fanless, ±4KV Surge Protection,Watchdog, 120W Internal Power Supply

Jumbo frames support

Yes

Jumbo frames

9216

MAC address table

2000 entries

Store-and-forward

Yes

Packet buffer memory

1 MB

Switching capacity

12 Gbit/s

Throughput

8.928 Mpps

Housing material

Metal

Wall mountable

Yes

Stackable

No

Rack mounting

Yes

LED indicators

Activity, Link, Power

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Yes

Flow control support

Yes

Mean time between failures (MTBF)

100000 h

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Master (outer) case height

402 mm

Master (outer) case net weight

19 kg

Master (outer) case length

320 mm

Master (outer) case width

505 mm

Products per master (outer) case

20 pc(s)

Power over Ethernet (PoE)

Yes

Full duplex

Yes

Half duplex

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-TX

Cable types supported

Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1

Storage temperature (T-T)

-40 - 85 °C

Operating altitude

0 - 3048 m

Storage relative humidity (H-H)

5 - 90%

Operating temperature (T-T)

-20 - 50 °C

Switching optical modules type

Gigabit Ethernet

Fiber type

Multi-mode

Cables included

AC

Package type

Box

Package weight

900 g

Package depth

190 mm

Package height

60 mm

Package width

245 mm

Fanless

Yes

Plug and Play

Yes

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity

1

Installed SFP modules quantity

1

Basic switching RJ-45 Ethernet ports quantity

5

Combo SFP ports quantity

1

Power connector

AC-in jack

Power over Ethernet (PoE) ports quantity

4

Uplink ports quantity

1

Output current

1.25 A

Output voltage

52 V

Power source

AC

Input current

1.25 A

Power supply included

Yes

Power over Ethernet (PoE) power per port

30 W

Power over Ethernet plus (PoE+) ports quantity

1

Total Power over Ethernet (PoE) budget

120 W

Width

200 mm

Weight

600 g

Layer

Layer-2

Rackable

No

LAN-Port-Type

Gigabit

Redundant-PSU

No

LAN-Ports

5
