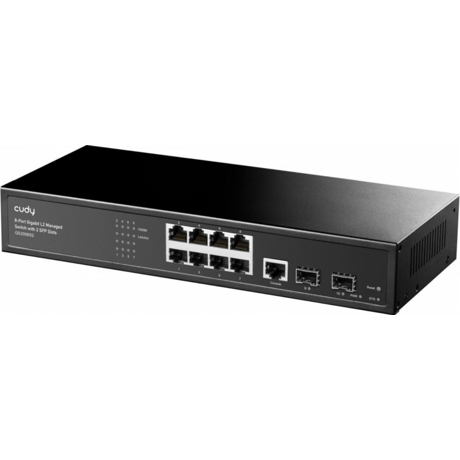

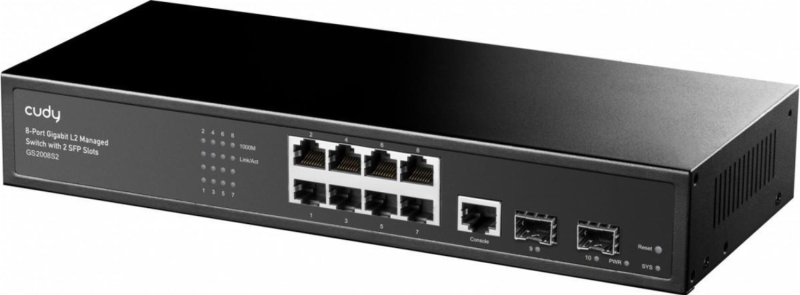

CUDY Switch Managed 8-Port Layer 2 10/100/1000M, 8x porturi Gigabit Ethernet + 2x porturi Gigabit SFP + 1 port management, backplane bandwidth 20Gbps, suporta dial-up VLAN, extensie 250 metri, functie Layer 2 network management, suport routare, DHCP, VLAN, MAC address, ACL Access control, QOS

CUDY Switch Managed 8-Port Layer 2 10/100/1000M, 8x porturi Gigabit Ethernet + 2x porturi Gigabit SFP + 1 port management, backplane bandwidth 20Gbps, suporta dial-up VLAN, extensie 250 metri, functie Layer 2 network management, suport routare, DHCP, VLAN, MAC address, ACL Access control, QOS, multicast, storm suppression, IPV4/IPV6 si alte functii de business, suporta autentificarea 802.1X, ARP intrusion detection, protectie sursa IP, protectie DoS si alte politici de control de securitate, suporta STP/RSTP/MSTP protocol spanning tree, functii dinamice/Network protection precum static link aggregation, suporta Web/Telnet/CLI/SSH management si metode de mentenanta

Jumbo frames support

Yes

Static route

Yes

MAC address table

8000 entries

Packet buffer memory

0.5 MB

Switching capacity

56 Gbit/s

Forwarding rate

41.66 Mpps

Jumbo frames

9.6

Form factor

1U

Rack mounting

Yes

Stackable

Yes

LED indicators

Activity, Link, Power, System

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.11j, IEEE 802.11k, IEEE 802.1Qav

Flash memory

16 MB

Flow control support

Yes

Rate limiting

Yes

Traffic classification

Yes

Web-based management

Yes

System event log

Yes

Switch type

Managed

Switch layer

L2

Multicast support

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Virtual LAN features

Voice VLAN

MAC address auto-aging supported

Yes

MAC address auto-learning supported

Yes

Cable types supported

Cat3, Cat4, Cat5

Number of VLANs

4096

Port mirroring

Yes

Link aggregation

Yes

Storage relative humidity (H-H)

5 - 90%

Operating temperature (T-T)

10 - 50 °C

Fiber type

Multi-mode

Package type

Box

Package width

312 mm

Package depth

262 mm

Package height

84 mm

Package weight

1.54 kg

Memory type

DDR-SDRAM

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

2

Gigabit Ethernet (copper) ports quantity

8

Installed SFP+ modules quantity

2

Console port

RJ-45

Power supply included

Yes

Power source

AC

IPv4 & IPv6 features

IPv6 Telnet

DHCP features

DHCP Option 82, DHCP server, DHCP snooping

Authentication type

RADIUS, TACACS+

IP-MAC-Port binding

Yes

SSH/SSL support

Yes

Authentication

Port-based authentication

IGMP snooping

Yes

Weight

1.01 kg

Depth

18.1 mm

Width

268 mm

Layer

Layer-2

Rackable

No

LAN-Port-Type

Gigabit

LAN-Ports

8

Redundant-PSU

No
