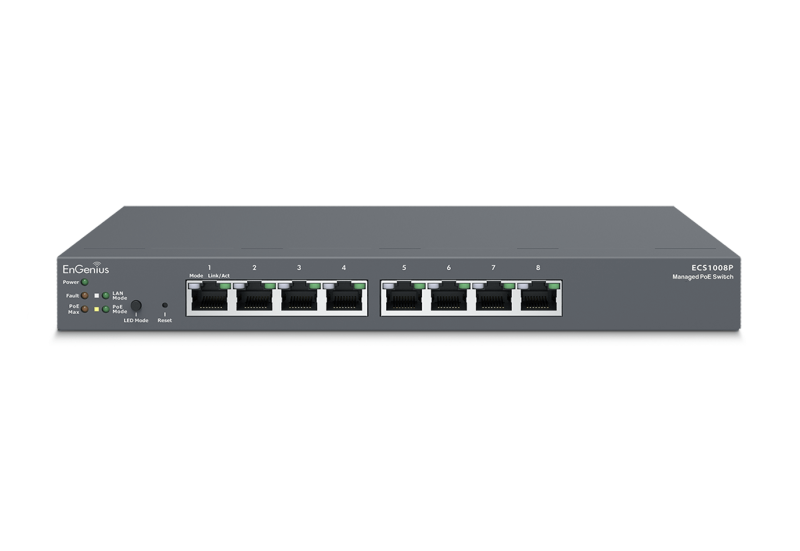

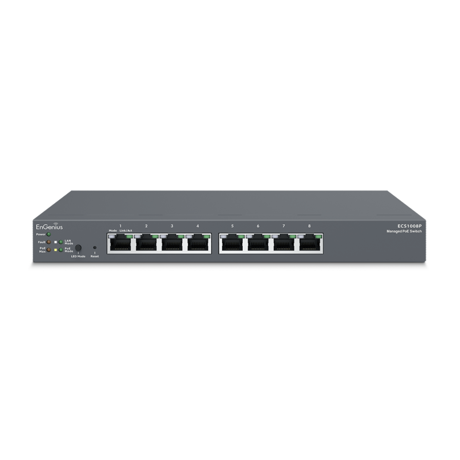

EnGenius Managed / stand-alone Desktop 8-port 55W GbE Switch (PoE) 8-port GbE PoE.af 55W L2+ DT Cloud Management Switch

EnGenius Managed / stand-alone Desktop 8-port 55W GbE Switch (PoE) 8-port GbE PoE.af 55W L2+ DT Cloud Management Switch

Jumbo frames support

Yes

Static route

Yes

MAC address table

8000 entries

Jumbo frames

9000

Switching capacity

16 Gbit/s

Number of static routes

63

Number of IP interfaces

20

LED indicators

Yes

Rack mounting

No

Stackable

No

Wall mountable

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Flash memory

32 MB

Harmonized System (HS) code

85176990

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

Switch layer

L2

Firmware upgradeable

Yes

Web-based management

Yes

System event log

Yes

Switch type

Managed

Multicast support

Yes

Multicast Listener Discovery (MLD) snooping

v1

Number of multicast groups filtered

256

Multicast features

Multicast forwarding

10G support

No

Broadcast storm control

Yes

Spanning tree protocol

Yes

Power over Ethernet (PoE)

Yes

Full duplex

Yes

Link aggregation

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Virtual LAN features

Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Quick start guide

Yes

Cables included

AC

Installed SFP+ modules quantity

0

Installed SFP modules quantity

0

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE) ports quantity

8

Gigabit Ethernet (copper) ports quantity

8

Total Power over Ethernet (PoE) budget

55 W

Management protocols

SNMP v1/v2c/v3

Authentication type

IEEE 802.1x, RADIUS

DHCP features

DHCP relay, DHCP snooping

Authentication

Port-based authentication

Security algorithms

802.1x RADIUS, SSH, SSL/TLS

Access Control List (ACL)

Yes

IGMP snooping

Yes

Height

27 mm

Depth

105 mm

Weight

1.5 kg

Width

240 mm

Rackable

No

LAN-Port-Type

FastEthernet

LAN-Ports

8

Redundant-PSU

No
