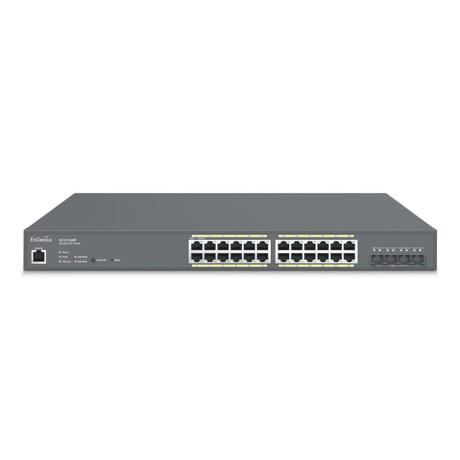

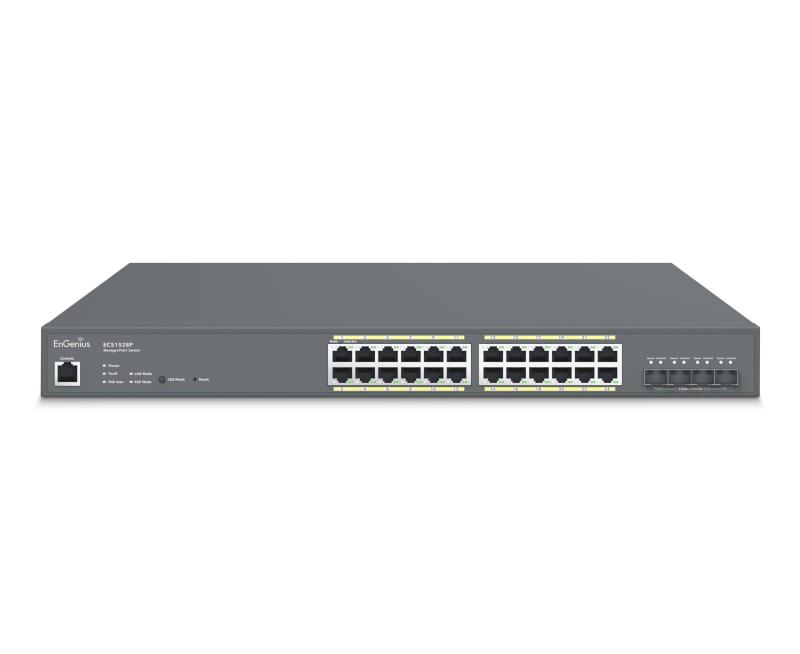

EnGenius Managed / stand-alone 19i 24xGbE + 4x10Gb SFP+, L2+, 240W Cloud Switch (PoE+) with 4x SFP+, 24-Port GbE PoE.af/at(+) 240W 4x10Gb SFP+ L2+ 19i Cloud Management Switch

EnGenius Managed / stand-alone 19i 24xGbE + 4x10Gb SFP+, L2+, 240W Cloud Switch (PoE+) with 4x SFP+, 24-Port GbE PoE.af/at(+) 240W 4x10Gb SFP+ L2+ 19i Cloud Management Switch

Certification

CE, FCC, IC

Jumbo frames support

Yes

Static route

Yes

MAC address table

16000 entries

Switching capacity

128 Gbit/s

Jumbo frames

10000

Number of static routes

192

Stackable

No

Rack mounting

Yes

LED indicators

Fault, LAN, PoE, Power

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flash memory

128 MB

Flow control support

Yes

Master (outer) case gross weight

13.3 kg

Master (outer) case height

360 mm

Products per master (outer) case

3 pc(s)

Master (outer) case length

580 mm

Master (outer) case net weight

12.4 kg

Master (outer) case width

330 mm

Web-based management

Yes

System event log

Yes

Switch type

Managed

Firmware upgradeable

Yes

Switch layer

L2

ARP inspection

Yes

Cloud-managed

Yes

Multicast MAC address table

256 entries

Multicast support

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

10G support

No

Spanning tree protocol

Yes

IPv4 routes

63

IPv6 routes

21

Link aggregation

Yes

Power over Ethernet (PoE)

Yes

Full duplex

Yes

Virtual LAN features

Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

0 - 50 °C

Cables included

AC, LAN (RJ-45)

Rack mount kit

Yes

Package height

105 mm

Package depth

350 mm

Package width

540 mm

Package weight

4.15 kg

Memory type

SDRAM

SFP+ module slots quantity

4

Power over Ethernet (PoE) ports quantity

24

Basic switching RJ-45 Ethernet ports quantity

24

SFP module slots quantity

4

Installed SFP+ modules quantity

0

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power supply included

Yes

AC input frequency

50/60 Hz

Power source

AC

Total Power over Ethernet (PoE) budget

240 W

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL)

IGMP snooping

Yes

Queue scheduling algorithms

Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

DHCP features

DHCP relay, DHCP snooping

SSH/SSL support

Yes

Authentication type

RADIUS

Security algorithms

SNMP, SNMPv2, SNMPv3

Access Control List (ACL)

Yes

Depth

260 mm

Weight

30.1 kg

Rackable

No

LAN-Port-Type

FastEthernet

LAN-Ports

8

Redundant-PSU

No
