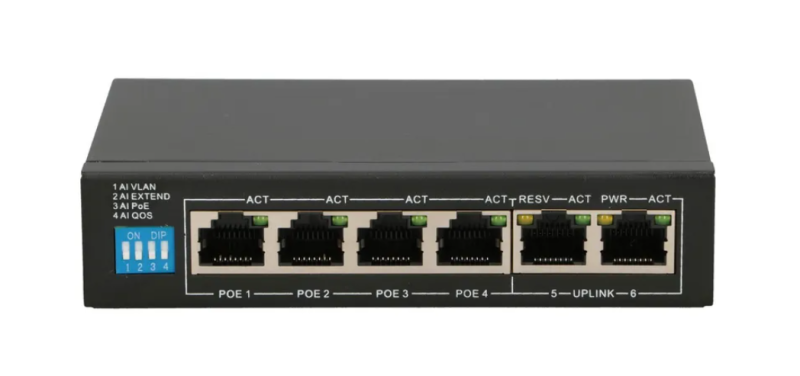

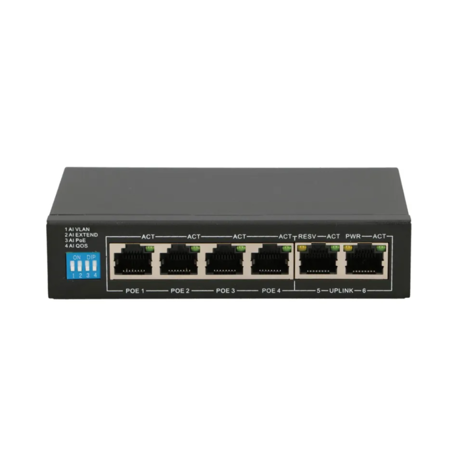

Extralink EUROS V2 PoE Switch 4x 100Mb/s PoE/PoE+ 2x RJ45 Uplink 100Mb/s 60W

Extralink EUROS V2 PoE Switch 4x 100Mb/s PoE/PoE+ 2x RJ45 Uplink 100Mb/s 60W

MAC address table

4096 entries

Store-and-forward

Yes

Switching capacity

1.2 Gbit/s

Temperature sensor

No

Wall mountable

Yes

LED indicators

Access, Network, Ready

DIN rail mounting

No

Stackable

No

Reset button

Yes

Rack mounting

No

Quality of Service (QoS) support

No

Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Cloud-managed

No

Traffic shaping

No

Configuring Location Settings (CLI)

No

ARP inspection

No

Switch type

Unmanaged

Traffic classification

Yes

Web-based management

No

Switch layer

L2

Power over Ethernet (PoE)

Yes

10G support

No

USB 2.0 ports quantity

0

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Basic switching RJ-45 Ethernet ports quantity

6

Power connector

AC-in jack

Installed QSFP+ modules quantity

0

HDMI stacking ports

0

SGMII ports quantity

0

XAUI ports quantity

0

40G KR4 ports quantity

0

Fast Ethernet (copper) ports quantity

6

10G KR ports quantity

0

Power source

DC

Power supply included

Yes

Product or Article Information Sheet available?

Yes

Height

27 mm

Weight

500 g

Depth

75 mm

Width

125 mm

LAN-Port-Type

FastEthernet
