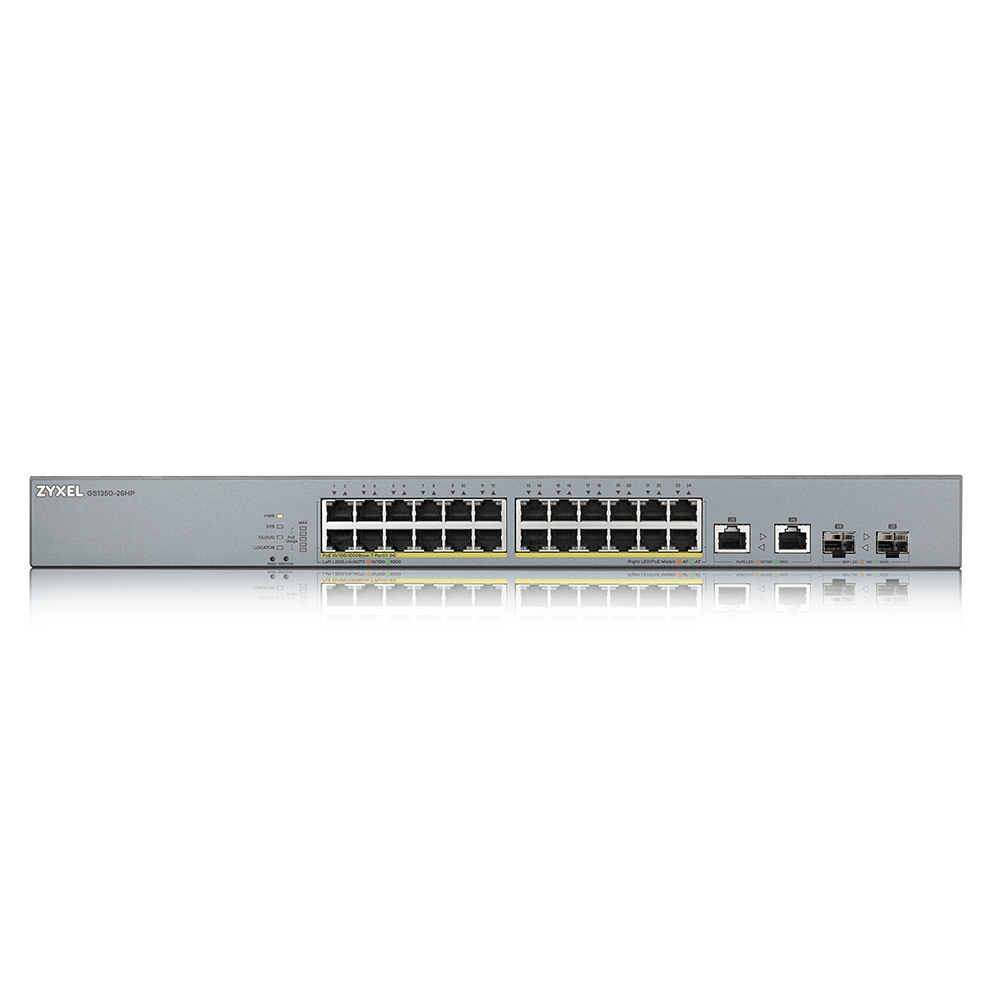

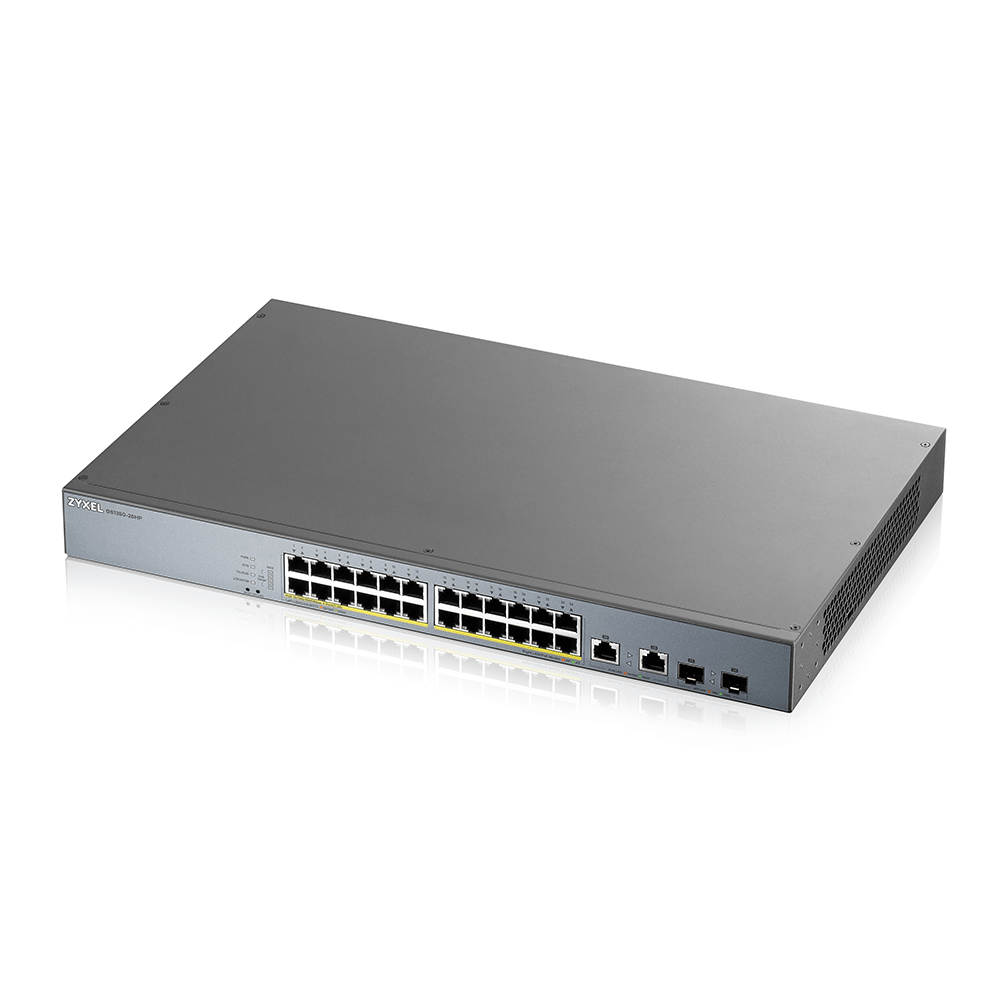

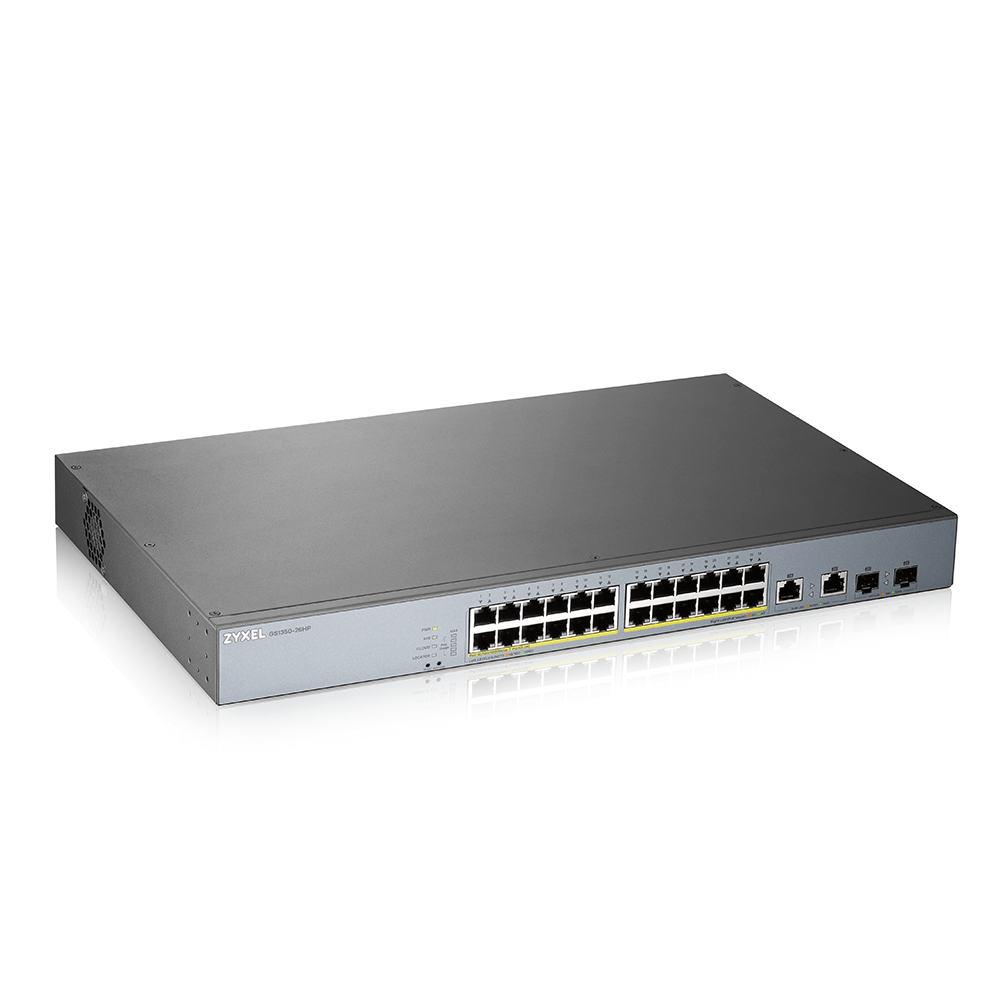

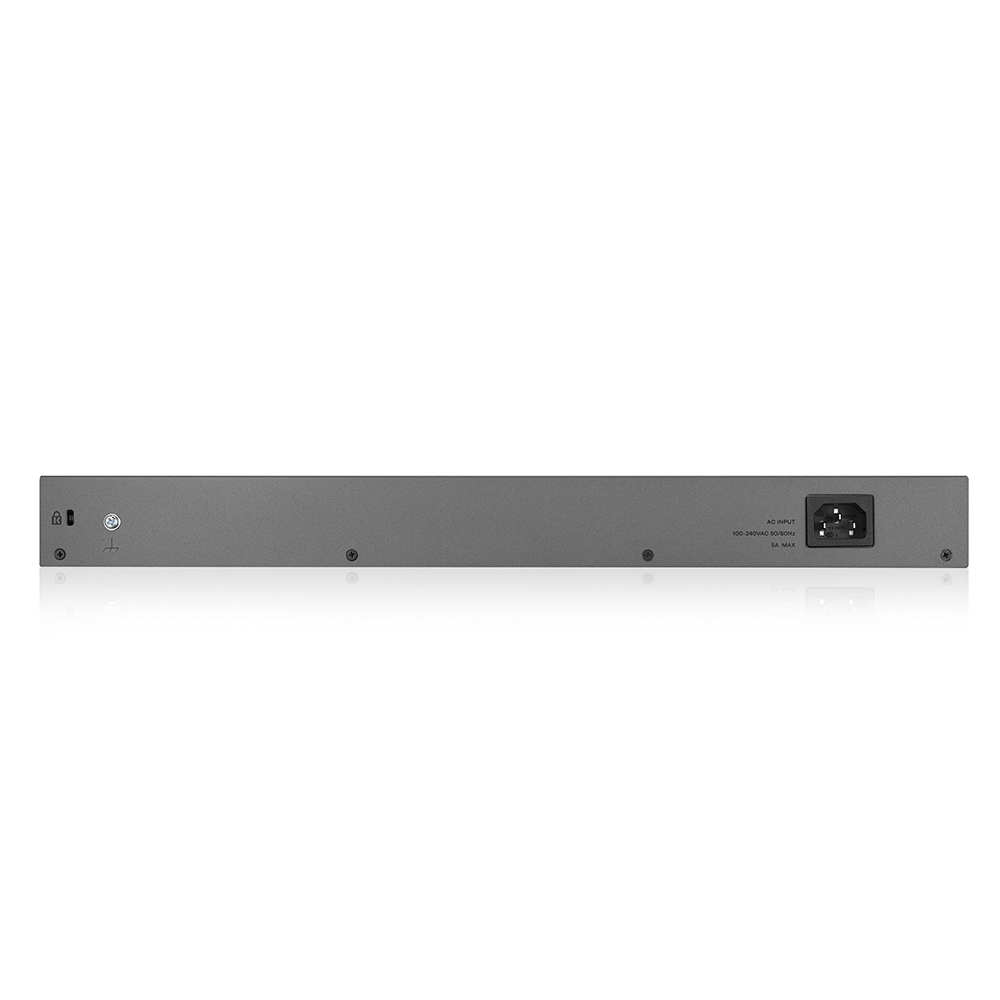

ZYXEL GS1350-26HP 24-PORT GBE POE SWITCH

The GS1350 Series offers a smart, intuitive web UI experience, specifically for your surveillance applications.
Monitor your cameras and PoE status at a glance and setup your surveillance network with absolute ease.

Switching capacity

52 Gbit/s

Packet buffer memory

0.525 MB

MAC address table

8000 entries

Forwarding rate

38.7 Mpps

Electromagnetic compatibility

CE, FCC, C-Tick, A; BSMI CNS13438

LED indicators

Yes

Rack mounting

Yes

Flow control support

Yes

VLAN support

Yes

Rate limiting

Yes

Mean time between failures (MTBF)

888495 h

Harmonized System (HS) code

85176990

Configuring Location Settings (CLI)

Yes

Web-based management

Yes

System event log

Yes

Switch type

Managed

Switch layer

L2

Firmware upgradeable

Yes

Multicast support

Yes

10G support

No

Broadcast storm control

Yes

Spanning tree protocol

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Port mirroring

Yes

Power over Ethernet (PoE)

Yes

Virtual LAN features

MAC address-based VLAN, Port-based VLAN

Number of VLANs

256

Operating relative humidity (H-H)

5 - 95%

Storage temperature (T-T)

-40 - 70 °C

Heat dissipation

1530.75 BTU/h

Operating temperature (T-T)

-20 - 50 °C

Storage relative humidity (H-H)

5 - 95%

Fiber ethernet cabling technology

1000BASE-X

Cables included

AC

Rack mount kit

Yes

Noise level

40.1 dB

Power over Ethernet (PoE) ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

2

Installed SFP+ modules quantity

0

Installed SFP modules quantity

0

Basic switching RJ-45 Ethernet ports quantity

24

Power consumption (max)

448.9 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Total Power over Ethernet (PoE) budget

375 W

IGMP snooping

Yes

IGMP proxy

Yes

DHCP features

DHCP client, DHCP relay, DHCP snooping

Security algorithms

SNMP, SNMPv3, SSH, SSL/TLS

Queue scheduling algorithms

SPQ, WFQ, Weighted Round Robin (WRR)

Loop protection

Yes

Width

441 mm

Depth

270 mm

Weight

3.58 kg

LAN-Port-Type

Gigabit
