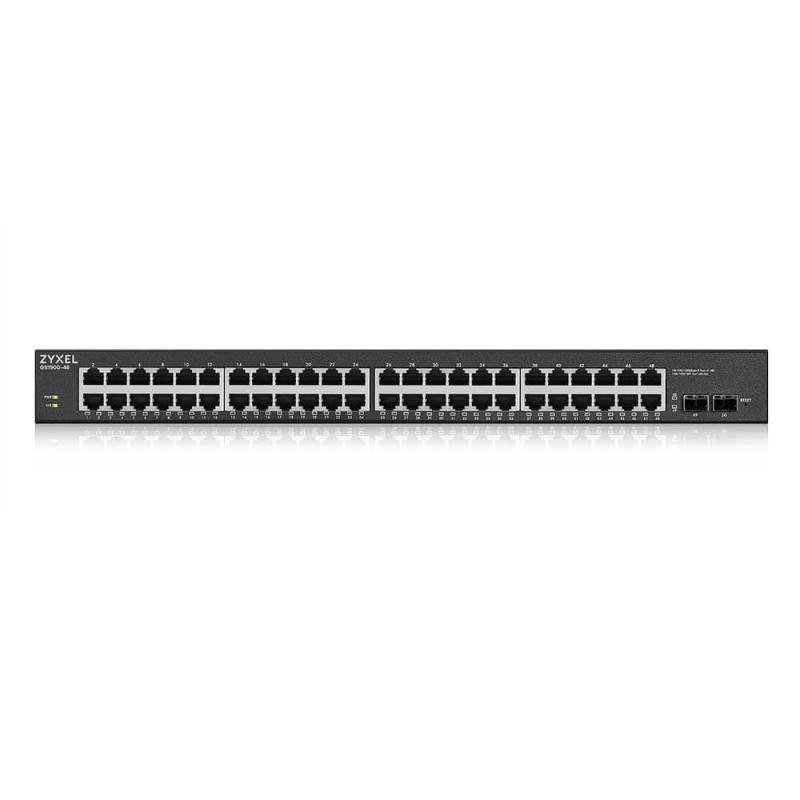

ZYXEL GS190048HPV2 48-PORT GBE SWITCH

ZYXEL GS190048HPV2 48-PORT GBE SWITCH

Certification

RoHS, CE

Jumbo frames support

Yes

MAC address table

8000 entries

Store-and-forward

Yes

Switching capacity

100 Gbit/s

LED indicators

Yes

Rack mounting

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Harmonized System (HS) code

85176990

MIB support

RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493

Switch layer

L2

Switch type

Managed

Power over Ethernet (PoE)

Yes

Full duplex

Yes

Copper ethernet cabling technology

1000BASE-T

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 95%

Noise level

36.9 dB

SFP+ module slots quantity

2

Basic switching RJ-45 Ethernet ports quantity

48

Power over Ethernet (PoE) ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

SFP module slots quantity

2

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

220.5 W

Total Power over Ethernet (PoE) budget

170 W

Depth

270 mm

Weight

3.55 kg

Width

441 mm

LAN-Port-Type

Gigabit
