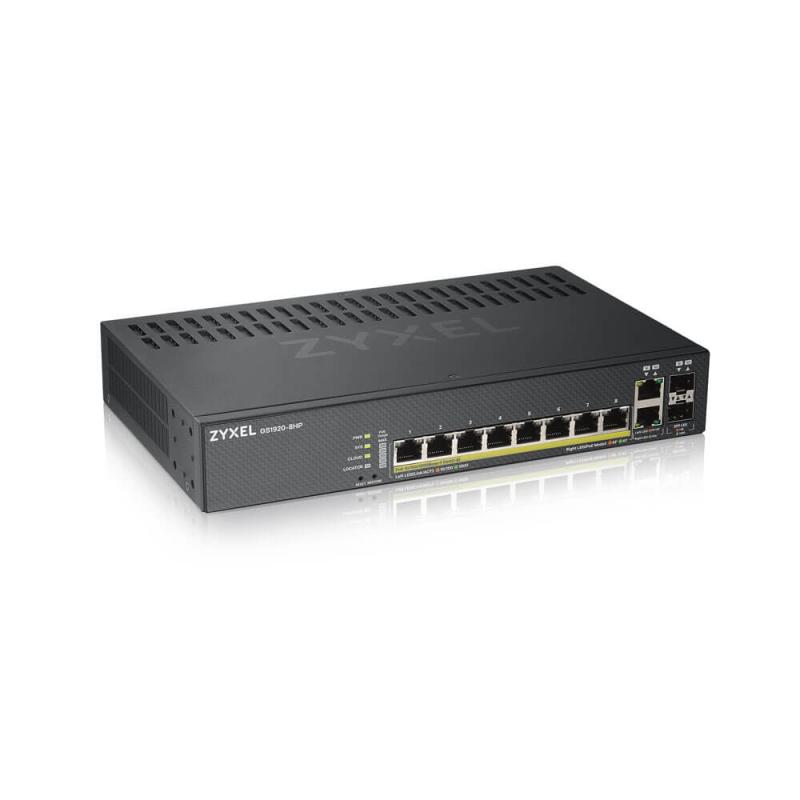

ZYXEL GS1920-8HPV2 8 PORT GBE POE SWITCH

ZYXEL GS1920-8HPV2 8 PORT GBE POE SWITCH

Certification

RoHS

Packet buffer memory

1.5 MB

Switching capacity

20 Gbit/s

Forwarding rate

15 Mpps

MAC address table

16000 entries

Rack mounting

No

Safety

LVD, BSMI

Electromagnetic compatibility

FCC 15 A, CE A, BSMI EMC

LED indicators

Yes

Wall mountable

Yes

Mean time between failures (MTBF)

513985 h

Flash memory

32 MB

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Rate limiting

Yes

Harmonized System (HS) code

85176990

ARP inspection

Yes

System event log

Yes

Switch type

Managed

Multicast support

Yes

Copper ethernet cabling technology

100BASE-TX, 1000BASE-T

Power over Ethernet (PoE)

Yes

10G support

No

Spanning tree protocol

Yes

Storage relative humidity (H-H)

10 - 95%

Operating relative humidity (H-H)

10 - 95%

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Heat dissipation

551.74 BTU/h

Fiber ethernet cabling technology

1000BASE-X

Cables included

AC

Package width

375 mm

Package depth

235 mm

Package height

61 mm

Package weight

2.73 kg

Noise level

0 dB

Installed SFP modules quantity

0

Fiber optic connector

SFP+

Installed SFP+ modules quantity

0

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE) ports quantity

8

Combo SFP ports quantity

2

Basic switching RJ-45 Ethernet ports quantity

8

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

161.8 W

Total Power over Ethernet (PoE) budget

130 W

Password protection

Yes

MAC address filtering

Yes

Access Control List (ACL)

Yes

IGMP snooping

Yes

Authentication

Guest VLAN, Port-based authentication

Authentication type

IEEE 802.1x, RADIUS

CPU defense

Yes

DHCP features

DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client

Security algorithms

802.1x RADIUS, SNMP, SNMPv3

Queue scheduling algorithms

SPQ, WFQ, Weighted Round Robin (WRR)

IP-MAC-Port binding

Yes

Weight

1.9 kg

Width

267 mm

Depth

16.2 mm

LAN-Port-Type

Gigabit
