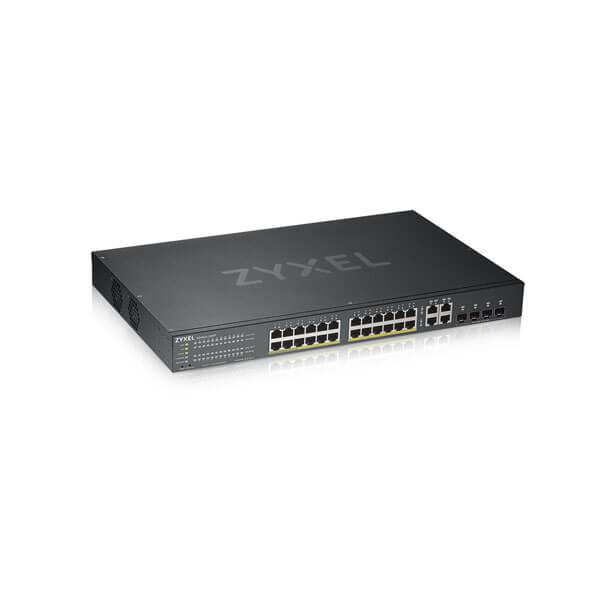

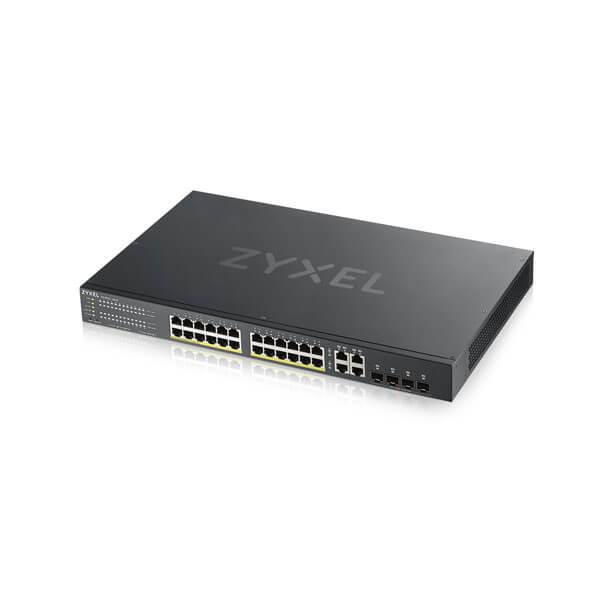

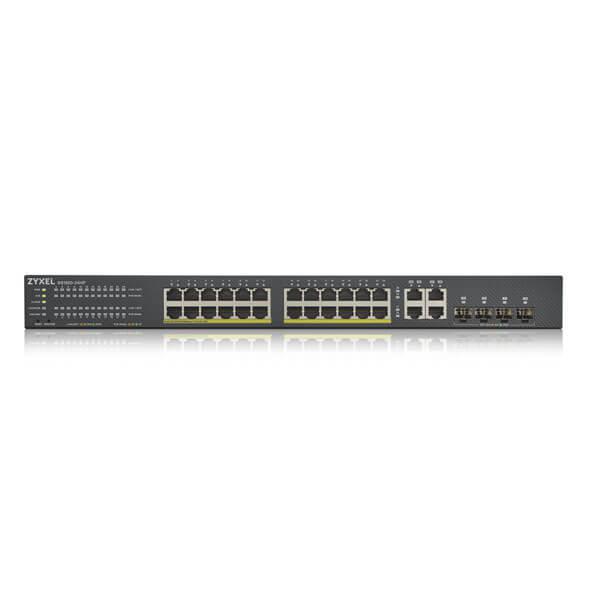

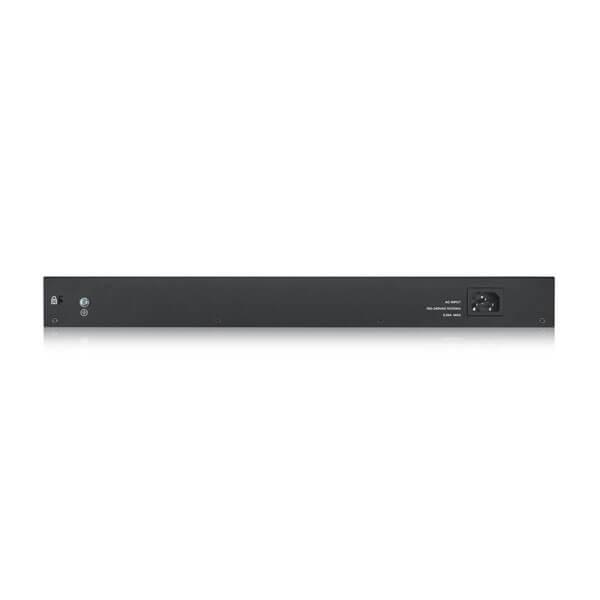

ZYXEL GS192024HPV2 24-PORT GBE POESWITCH

ZYXEL GS192024HPV2 24-PORT GBE POESWITCH

24-port GbE Smart Managed Switch

GS1920 Series

Certification

RoHS

Packet buffer memory

1.5 MB

Switching capacity

56 Gbit/s

Forwarding rate

42 Mpps

MAC address table

16000 entries

Rack mounting

Yes

Safety

LVD, BSMI

Electromagnetic compatibility

FCC 15 A, CE A, BSMI EMC

LED indicators

Yes

Mean time between failures (MTBF)

638691 h

Flash memory

32 MB

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Rate limiting

Yes

Harmonized System (HS) code

85176990

ARP inspection

Yes

System event log

Yes

Switch type

Managed

Multicast support

Yes

Copper ethernet cabling technology

100BASE-TX, 1000BASE-T

Power over Ethernet (PoE)

Yes

10G support

No

Spanning tree protocol

Yes

Storage relative humidity (H-H)

10 - 95%

Operating relative humidity (H-H)

10 - 95%

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Heat dissipation

1580.54 BTU/h

Fiber ethernet cabling technology

1000BASE-X

Cables included

AC

Rack mount kit

Yes

Package depth

355 mm

Package height

107 mm

Package width

616 mm

Package weight

4.97 kg

Noise level

27.2 dB

Combo SFP ports quantity

4

Power over Ethernet (PoE) ports quantity

24

Fiber optic connector

SFP+

Installed SFP+ modules quantity

0

Installed SFP modules quantity

0

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

463.5 W

Total Power over Ethernet (PoE) budget

375 W

Password protection

Yes

MAC address filtering

Yes

Access Control List (ACL)

Yes

Authentication

Guest VLAN, Port-based authentication

Authentication type

IEEE 802.1x, RADIUS

IGMP snooping

Yes

IP-MAC-Port binding

Yes

Queue scheduling algorithms

SPQ, WFQ, Weighted Round Robin (WRR)

DHCP features

DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client

Security algorithms

802.1x RADIUS, SNMP, SNMPv3

CPU defense

Yes

Width

441 mm

Weight

3.8 kg

Depth

270 mm

LAN-Port-Type

Gigabit
