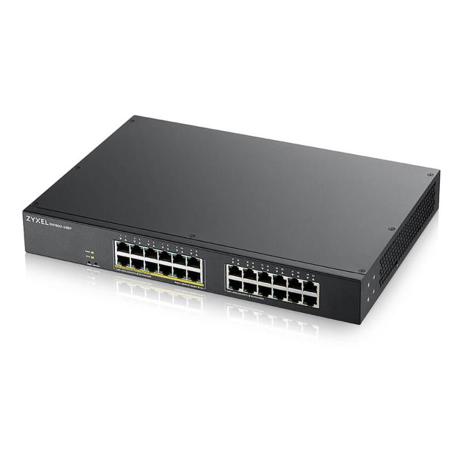

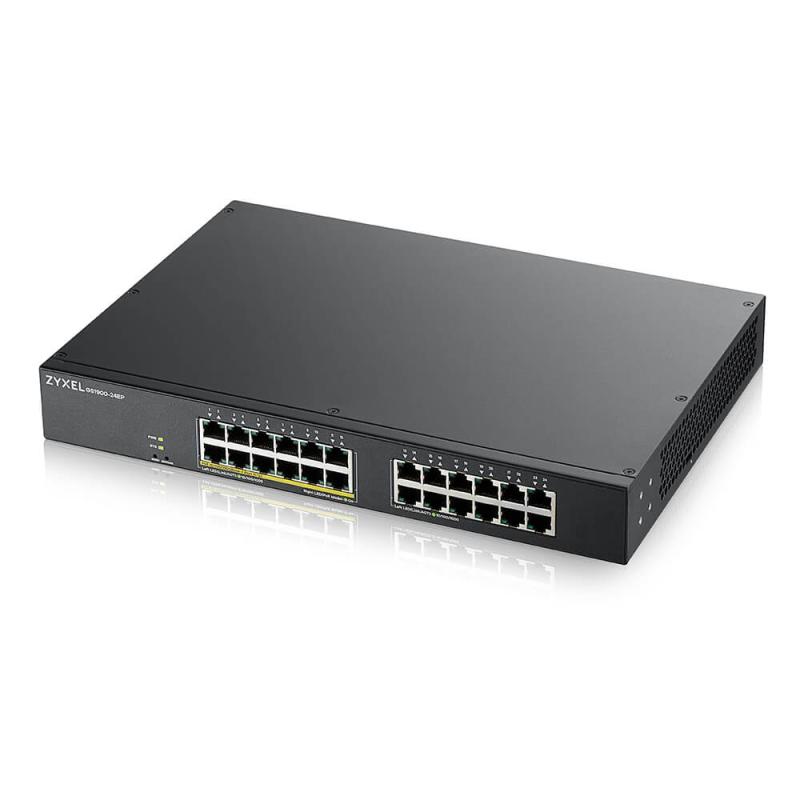

Zy GS1900-24, 24-port GbE L2, 12 Prt POE

Zy GS1900-24, 24-port GbE L2, 12 Prt POE

Jumbo frames support

Yes

MAC address table

8000 entries

Jumbo frames

9000

Store-and-forward

Yes

Packet buffer memory

0.525 MB

Switching capacity

48 Gbit/s

Forwarding rate

35.7 Mpps

Stackable

Yes

Reset button

Yes

Rack mounting

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Harmonized System (HS) code

85176990

Switch type

Managed

Switch layer

L2

Multicast support

Yes

Spanning tree protocol

No

Virtual LAN features

Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN

Cable types supported

Cat5, Cat5e

MAC address auto-learning supported

Yes

Power over Ethernet (PoE)

Yes

Full duplex

Yes

Link aggregation

Yes

Auto MDI/MDI-X

Yes

Port mirroring

Yes

10G support

No

Quick start guide

Yes

Cables included

AC

Package type

Box

Noise level

26 dB

Installed SFP+ modules quantity

0

Installed SFP modules quantity

0

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

24

Power connector

AC-in jack

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

206.5 W

Power supply included

Yes

Password protection

Yes

Security algorithms

802.1x RADIUS

MAC address filtering

Yes

IGMP snooping

Yes

SSH/SSL support

Yes

DHCP features

DHCP client

Static port security

Yes

Authentication type

HWTACACS+, IEEE 802.1x, RADIUS

Width

330 mm

Weight

2.48 kg

Depth

330 mm

LAN-Port-Type

Gigabit
