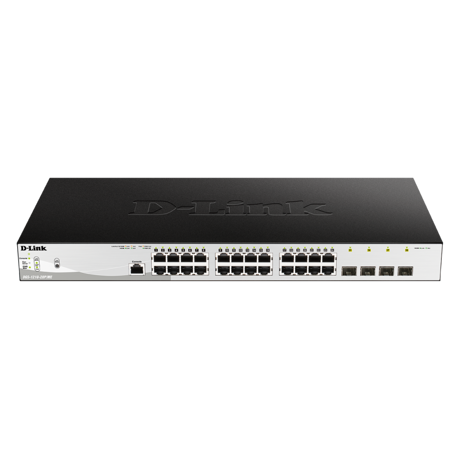

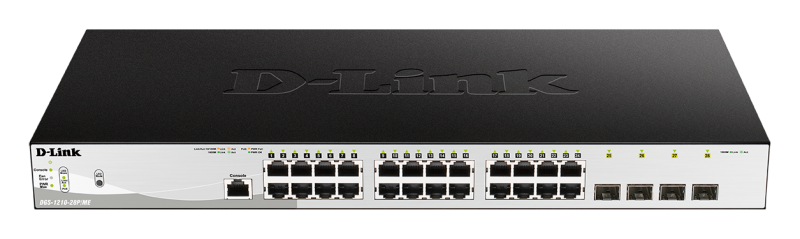

D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount, WebSmart, 2*fan

D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount, WebSmart, 2*fan

Compliance certificates

BSMI, CB, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI

Forwarding rate

41.7 Mpps

Number of static routes

96

Number of IP interfaces

4

Static route

Yes

Number of queues

8

MAC address table

16000 entries

Packet buffer memory

1.5 MB

Store-and-forward

Yes

Switching capacity

56 Gbit/s

Form factor

1U

Stackable

No

Number of fans

2 fan(s)

LED indicators

Activity, Fan fail, Link, Power, Speed

Ethernet LAN data rates

1000 Mbit/s

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flash memory

32 MB

Flow control support

Yes

Mean time between failures (MTBF)

331669 h

Switch layer

L2/L3

Configuring Location Settings (CLI)

Yes

Traffic classification

Yes

ARP inspection

Yes

Web-based management

Yes

System event log

Yes

Switch type

Managed

Multicast support

Yes

Multicast features

Controllable multicast

Number of multicast groups filtered

256

Multicast Listener Discovery (MLD) snooping

MLD v1, MLD v2

Cable types supported

Cat5, Cat5e

IPv4 routes

64

IPv6 routes

32

Virtual LAN features

MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN

Active link detection

Yes

Half duplex

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation

Yes

Number of VLANs

4094

Port mirroring

Yes

Auto MDI/MDI-X

Yes

Full duplex

Yes

Power over Ethernet (PoE)

Yes

Link aggregation

Yes

Storage relative humidity (H-H)

0 - 95%

Heat dissipation

857.98 BTU/h

Fiber ethernet cabling technology

1000BASE-X

Memory type

DDR3-SDRAM

Noise level

52.9 dB

Fanless

No

Installed SFP modules quantity

4

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity

4

Power over Ethernet (PoE) ports quantity

24

Basic switching RJ-45 Ethernet ports quantity

24

Console port

RJ-45

Input voltage

100 - 240 V

Power protection features

Surge protection

Power consumption (max)

251.5 W

Power source

AC

AC input frequency

50/60 Hz

Total Power over Ethernet (PoE) budget

193 W

GARP VLAN Registration Protocol (GVRP)

Yes

BPDU filtering/protection

Yes

IP-MAC-Port binding

Yes

IGMP snooping

Yes

SSH/SSL support

Yes

Loop protection

Yes

Password protection

Yes

Access Control List (ACL)

Yes

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping

Access Control List (ACL) rules

256

Access Control List (ACL) ingress

256

Security algorithms

EAP, SNMP, SNMPv2, SNMPv3

Authentication type

AAA, RADIUS, TACACS+

Queue scheduling algorithms

Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Sustainability certificates

UL ECOLOGO

Sustainability compliance

Yes

Weight

3.34 kg

Depth

210 mm

LAN-Ports

24

Layer

Unmanaged

Rackable

Yes

LAN-Port-Type

Gigabit

Redundant-PSU

No
