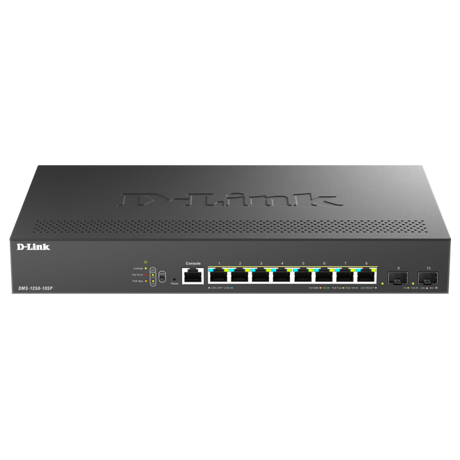

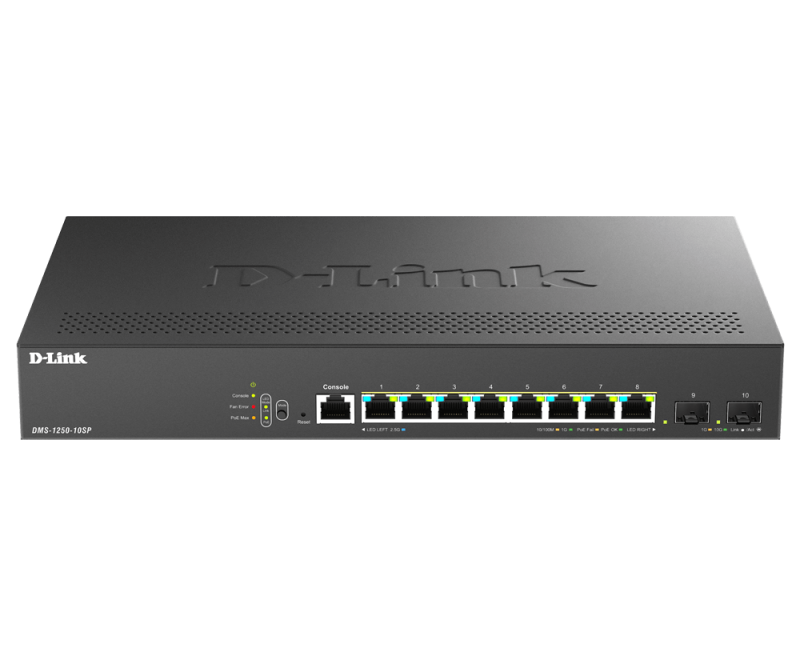

Switch D-Link DMS-1250-10SP , 8 porturi Gigabit, 2 porturi SFP+, Protocol 802.1D STP 802.1s MSTP 802.1w RSTP, rackabil

Switch D-Link DMS-1250-10SP , 8 porturi Gigabit, 2 porturi SFP+, Protocol 802.1D STP 802.1s MSTP 802.1w RSTP, rackabil

Certification

CB, UL, BSMI, CE Class A, VCCI Class A, FCC Class A, IC, BSMI, RCM

Jumbo frames support

Yes

Static route

Yes

MAC address table

16000 entries

Store-and-forward

Yes

Jumbo frames

12000

Switching capacity

80 Gbit/s

Forwarding rate

59.53 Mpps

Number of static routes

128

LED indicators

Yes

Stackable

Yes

Reset button

Yes

Rack mounting

Yes

Ethernet LAN data rates

100,1000,2500 Mbit/s

Flash memory

32 MB

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Web-based management

Yes

Switch type

Managed

ARP inspection

Yes

Number of VLANs

4094

Broadcast storm control

Yes

Spanning tree protocol

Yes

Power over Ethernet (PoE)

Yes

10G support

Yes

Port mirroring

Yes

Storage relative humidity (H-H)

0 - 95%

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-20 - 70 °C

Quick start guide

Yes

Memory type

DRAM

Power over Ethernet (PoE) ports quantity

8

Combo SFP ports quantity

2

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

2.5G Ethernet (copper) ports quantity

8

Power connector

AC-in jack

Power source

AC

Power supply included

Yes

AC input frequency

50/60 Hz

Power consumption (max)

287.58 W

Total Power over Ethernet (PoE) budget

240 W

Power over Ethernet (PoE) power per port

30 W

Authentication type

RADIUS

IGMP snooping

Yes

Loop protection

Yes

DHCP features

DHCP client, DHCP snooping

IGMP entries

256

Access Control List (ACL) IPv4 entries

768

Access Control List (ACL) IPv6 entries

384

Access Control List (ACL)

Yes

Password protection

Yes

Weight

23.8 kg

Depth

200 mm

Width

330 mm

Layer

Layer-3

Rackable

Yes

LAN-Port-Type

Gigabit

LAN-Ports

8

Redundant-PSU

No
