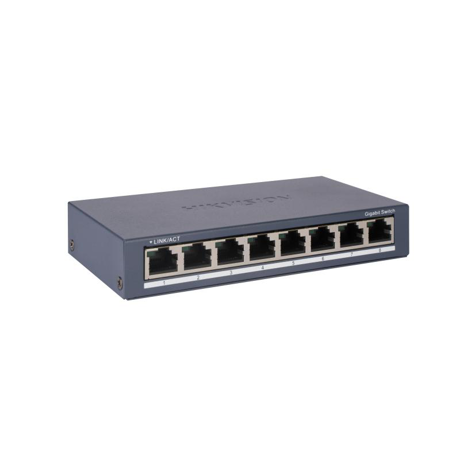

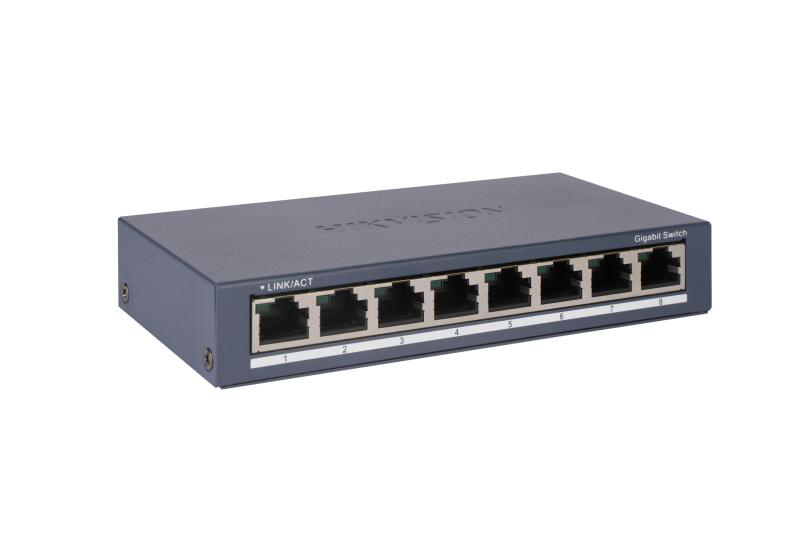

Switch Hikvision DS-3E0508-O: 8 × Gigabit RJ45 port maxim 3W, tensiune alimentare: 5VDC, 0.6A, dimensiuni: 145.00 mm × 25.60 mm × 68.45 mm, greutate: 0.24kg, montare pe birou sau pe perete.

Switch Hikvision DS-3E0508-O: 8 × Gigabit RJ45 port maxim 3W, tensiune alimentare: 5VDC, 0.6A, dimensiuni: 145.00 mm × 25.60 mm × 68.45 mm, greutate: 0.24kg, montare pe birou sau pe perete.

Compliance certificates

Electromagnetic Compatibility (EMC), REACH, RoHS, WEEE

MAC address table

8000 entries

Packet buffer memory

4 MB

Store-and-forward

Yes

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

Stackable

No

Rack mounting

No

Wall mountable

Yes

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

LED indicators

Yes

Housing material

Metal

Ethernet LAN data rates

1000 Mbit/s

Switch type

Unmanaged

Power over Ethernet (PoE)

No

10G support

No

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 95%

Quick start guide

Yes

Package weight

370 g

Fanless

Yes

Gigabit Ethernet (copper) ports quantity

8

Installed SFP+ modules quantity

0

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

Basic switching RJ-45 Ethernet ports quantity

8

Installed SFP modules quantity

0

Input current

0.6 A

Surge protection

Yes

DC input voltage

5 V

Power supply included

Yes

Power consumption (max)

3 W

Surge protection voltage

6 kV

Power source

DC

Power consumption (typical)

16.1 W

Porturi RJ 45

8 × Gigabit RJ45 port

Viteza Transfer

Gigabit

Management

Nu

Porturi SFP

None

Montare in rack

Nu

PoE

Nu

Weight

240 g

Depth

68.5 mm

Height

25.6 mm

Width

145 mm
