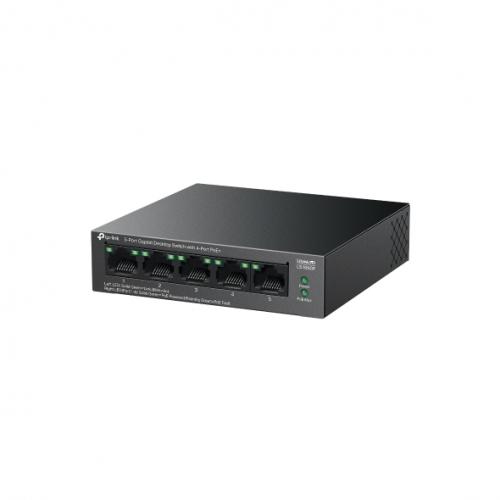

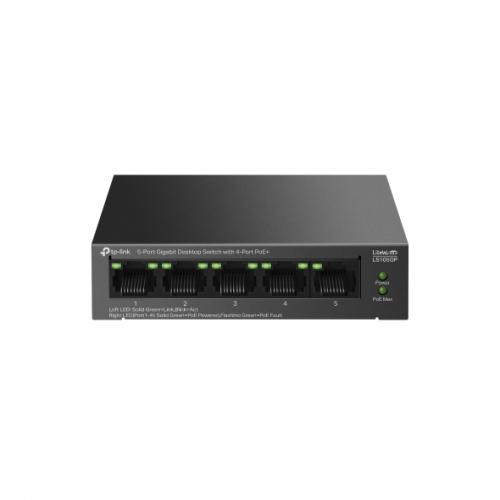

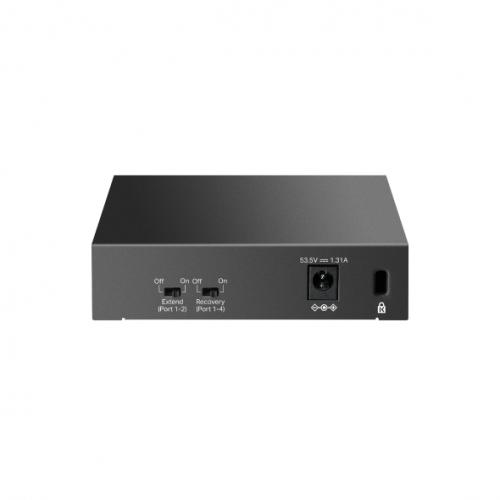

LS105GP "5-Port Gigabit Desktop Switch with 4-Port PoE+ PORT: 4× Gigabit PoE+ Ports, 1× Gigabit Non-PoE Port SPEC: 802.3af/at, 65 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, PoE Auto Recovery, Plug and Play"

"5-Port Gigabit Desktop Switch with 4-Port PoE+ PORT: 4× Gigabit PoE+ Ports, 1× Gigabit Non-PoE Port SPEC: 802.3af/at, 65 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, PoE Auto Recovery, Plug and Play"

Jumbo frames

16000

MAC address table

2000 entries

Store-and-forward

Yes

Switching capacity

10 Gbit/s

Forwarding rate

7.44 Mpps

Stackable

No

Flow control support

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Switch type

Unmanaged

Power over Ethernet (PoE)

Yes

Auto-negotiation

Yes

10G support

No

MAC address auto-learning supported

Yes

MAC address auto-aging supported

Yes

Auto MDI/MDI-X

Yes

Cable types supported

Cat3, Cat5e, Cat4, Cat5

Heat dissipation

253.16 BTU/h

Storage relative humidity (H-H)

5 - 90%

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

0

Power over Ethernet (PoE) ports quantity

4

Basic switching RJ-45 Ethernet ports quantity

5

Installed SFP+ modules quantity

0

DC input voltage

53.5 V

Power supply included

Yes

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

65 W

IGMP snooping

Yes

Rackable

No

LAN-Port-Type

Gigabit

Redundant-PSU

No

LAN-Ports

5
