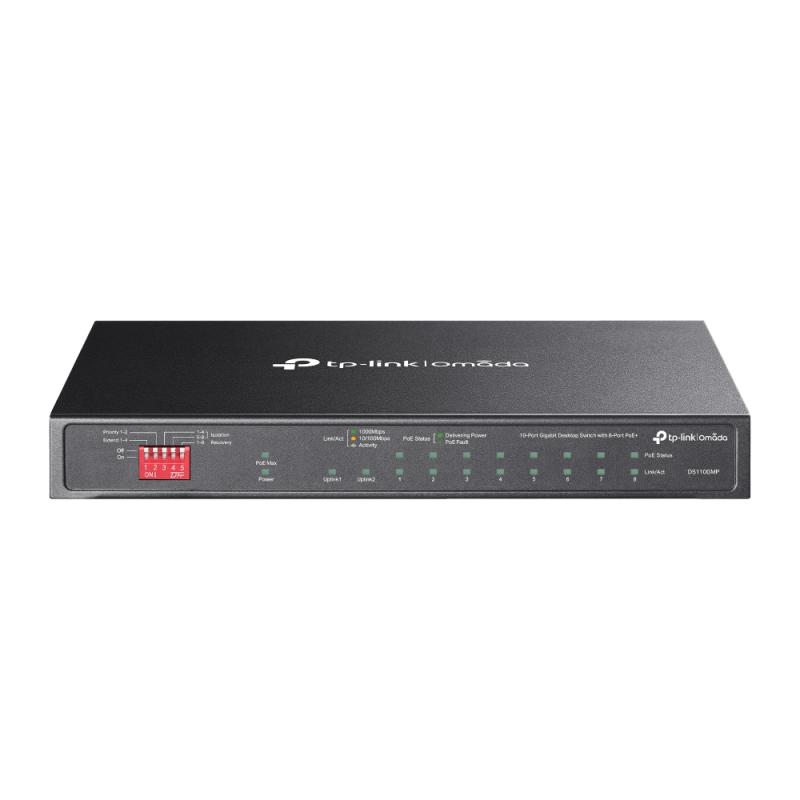

Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot SPEC: 802.3at/af, 123 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-2, Isolation Mode, PoE Auto Recovery

Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot SPEC: 802.3at/af, 123 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-2, Isolation Mode, PoE Auto Recovery, Plug and Play

Compliance certificates

CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS

Jumbo frames

16

Forwarding rate

1.488 Mpps

Jumbo frames support

Yes

Switching capacity

20 Gbit/s

MAC address table

4000 entries

Rack mounting

No

Housing material

Metal

Wall mountable

Yes

LED indicators

Activity, Link, PoE, Power

Ethernet LAN data rates

10,100,1000 Mbit/s

Quality of Service (QoS) support

Yes

Flow control support

Yes

Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Switch type

Unmanaged

Auto MDI/MDI-X

Yes

Power over Ethernet (PoE)

Yes

Full duplex

Yes

10G support

No

Half duplex

Yes

Auto-negotiation

Yes

MAC address auto-aging supported

Yes

MAC address auto-learning supported

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X

Operating temperature (T-T)

0 - 40 °C

Heat dissipation

482.17 BTU/h

Storage relative humidity (H-H)

5 - 90%

Cables included

Power

Plug and Play

Yes

Fanless

Yes

Basic switching RJ-45 Ethernet ports quantity

10

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

AC/DC

Combo SFP ports quantity

1

Input current

2.43 A

DC input voltage

53.5 V

Power source

DC

Power consumption (max)

141.4 W

Power supply included

Yes

Power over Ethernet (PoE) power per port

30 W

Power over Ethernet plus (PoE+) ports quantity

8

Total Power over Ethernet (PoE) budget

123 W

Porturi RJ 45

8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports

Porturi SFP

1× Combo Gigabit SFP Slot

Viteza Transfer

Gigabit

Management

Nu

Montare in rack

Nu

PoE

Nu

Height

26 mm

Depth

126 mm

Width

209 mm

LAN-Port-Type

FastEthernet
