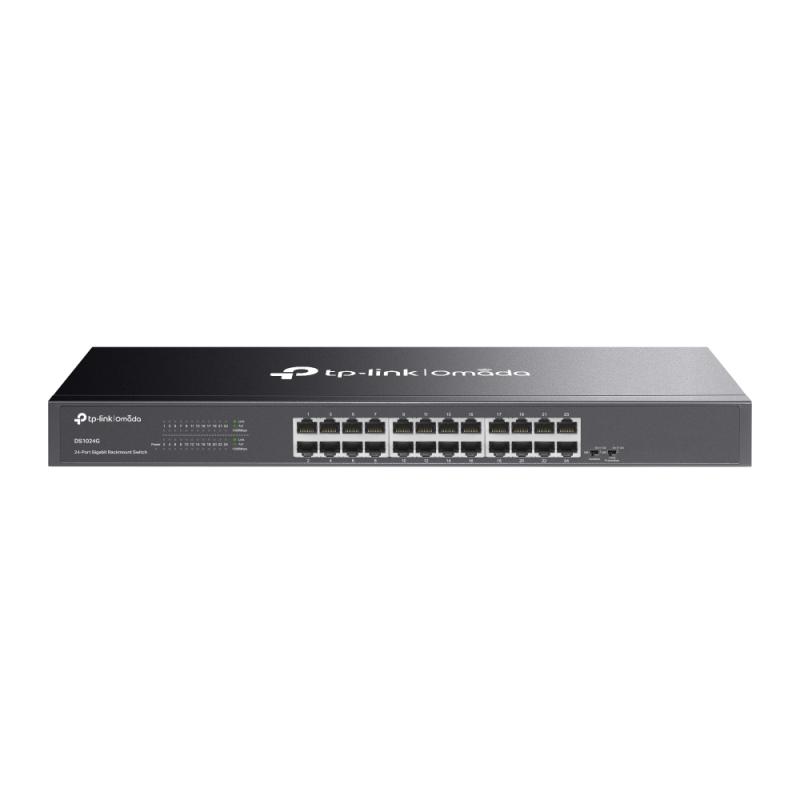

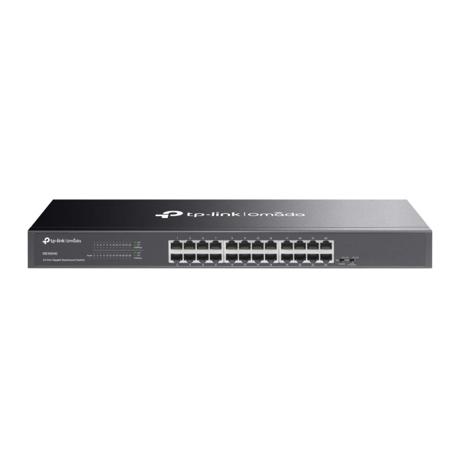

Omada 24-Port Gigabit Switch PORT: 24× Gigabit RJ45 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Plug and Play

Omada 24-Port Gigabit Switch PORT: 24× Gigabit RJ45 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Plug and Play

Compliance certificates

CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS

Forwarding rate

357 Mpps

Jumbo frames

10

Jumbo frames support

Yes

MAC address table

8000 entries

Store-and-forward

Yes

Switching capacity

48 Gbit/s

Reset button

Yes

Rack mounting

Yes

Form factor

1U

LED indicators

Yes

Housing material

Steel

Ethernet LAN data rates

10,100,1000 Mbit/s

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Switch type

Unmanaged

10G support

No

Power over Ethernet (PoE)

No

Auto MDI/MDI-X

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation

Yes

Storage relative humidity (H-H)

5 - 90%

Operating temperature (T-T)

0 - 40 °C

Heat dissipation

46.44 BTU/h

Cables included

Power

Rack mount kit

Yes

Rubber feet

Yes

Fanless

Yes

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

AC-in jack

Basic switching RJ-45 Ethernet ports quantity

24

Power supply included

Yes

Power source

AC

Power consumption (max)

13.62 W

AC input frequency

50/60 Hz

Loop protection

Yes

Porturi RJ 45

24× Gigabit RJ45 Ports

Porturi SFP

24× Gigabit RJ45 Ports

Viteza Transfer

Gigabit

Management

Nu

Montare in rack

Nu

PoE

Nu

Depth

140 mm

LAN-Port-Type

FastEthernet
