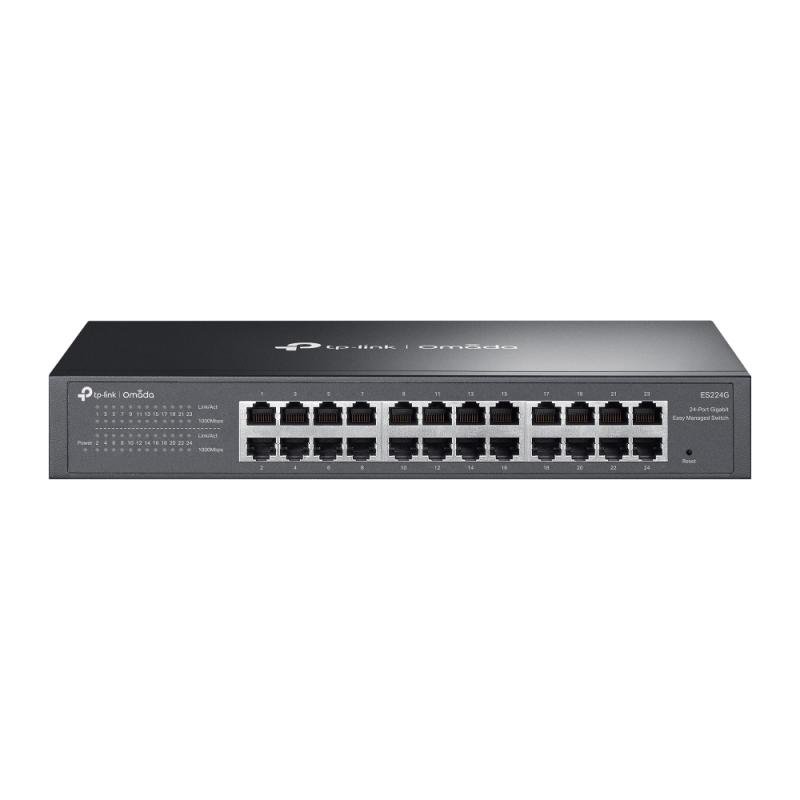

Omada 24-Port Gigabit Easy Managed Switch PORT: 24× Gigabit RJ45 Ports SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Omada 24-Port Gigabit Easy Managed Switch PORT: 24× Gigabit RJ45 Ports SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Packet buffer memory

4 MB

Store-and-forward

Yes

Switching capacity

48 Gbit/s

Jumbo frames

15000

Forwarding rate

357 Mpps

Jumbo frames support

Yes

MAC address table

8000 entries

Rack mounting

Yes

Stackable

No

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Switch layer

L2

Web-based management

Yes

Switch type

Managed

Firmware upgradeable

Yes

Cloud-managed

Yes

Unified static configuration

Yes

Multicast support

Yes

Fast leave

Yes

Virtual LAN features

MTU VLAN, Port-based VLAN

Number of VLANs

32

Port mirroring

Yes

Link aggregation

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

Broadcast storm control

Yes

Storage relative humidity (H-H)

5 - 90%

Cables included

AC

Rack mount kit

No

Fanless

Yes

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity

0

Basic switching RJ-45 Ethernet ports quantity

24

Gigabit Ethernet (copper) ports quantity

24

Installed SFP modules quantity

0

Surge protection

Yes

Power supply included

Yes

Surge protection voltage

6 kV

Power source

AC

AC input frequency

50/60 Hz

Queue scheduling algorithms

Weighted Round Robin (WRR)

DHCP features

DHCP client

IGMP snooping

Yes

Width

29.4 mm

Depth

140 mm

Rackable

No

LAN-Port-Type

FastEthernet

LAN-Ports

8

Redundant-PSU

No
