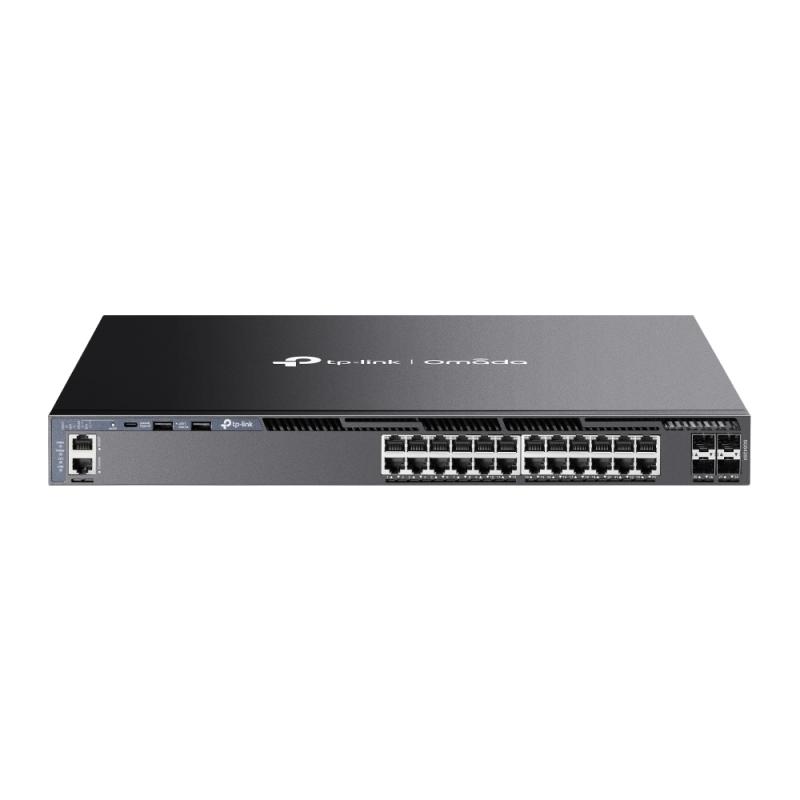

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB Console Port, Management Port, 2× USB2.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB Console Port, Management Port, 2× USB2.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, Static Routing, DHCP Server, DHCP Relay, ERPS, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies

Jumbo frames support

Yes

Static route

Yes

Jumbo frames

9000

Switching capacity

128 Gbit/s

Forwarding rate

95.2 Mpps

MAC address table

32000 entries

Packet buffer memory

3 MB

Number of fans

4 fan(s)

Form factor

1U

Stackable

Yes

Rack mounting

Yes

LED indicators

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Flow control support

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x

Rate limiting

Yes

Cloud-managed

Yes

Configuring Location Settings (CLI)

Yes

Switch layer

L3

ARP inspection

Yes

Web-based management

Yes

System event log

Yes

Switch type

Managed

Multicast support

Yes

IP routing

Yes

Number of VLANs

4000

10G support

No

Broadcast storm control

Yes

Spanning tree protocol

Yes

Port mirroring

Yes

Power over Ethernet (PoE)

No

Virtual LAN features

MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN

Operating temperature (T-T)

-5 - 40 °C

Heat dissipation

96.91 BTU/h

Storage relative humidity (H-H)

5 - 90%

Cables included

AC, LAN (RJ-45)

Console port

RJ-45/USB Type-C

SFP+ module slots quantity

4

USB 2.0 ports quantity

2

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

24

SFP module slots quantity

4

Power supply included

Yes

Power source

AC

Power consumption (max)

28.4 W

AC input frequency

50/60 Hz

Access Control List (ACL)

Yes

SSH/SSL support

Yes

Loop protection

Yes

Authentication type

RADIUS

IGMP snooping

Yes

DHCP features

DHCP relay, DHCP snooping, DHCPv6 snooping

IGMP entries

2048

Authentication

Auto VLAN, MAC-based authentication, Port-based authentication

Management

Da

Viteza Transfer

Gigabit

Montare in rack

Da

Porturi RJ 45

24× Gigabit RJ45 Ports

PoE

Nu

Porturi SFP

4× 10G SFP+ Slots

Depth

380 mm

LAN-Ports

24

Layer

Layer-2

Rackable

Yes

LAN-Port-Type

Gigabit

Redundant-PSU

Yes
