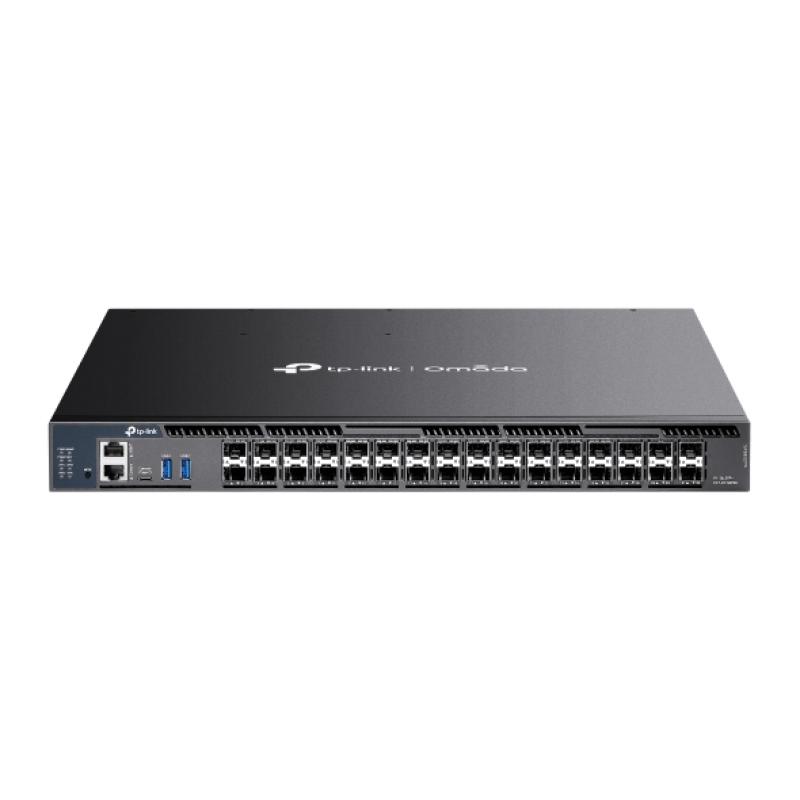

Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots PORT: 26× 10G SFP+ Slots, 6× 25G SFP28 Slots, RJ45/Type C USB Console Port, Management Port, 2× USB3.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF

Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots PORT: 26× 10G SFP+ Slots, 6× 25G SFP28 Slots, RJ45/Type C USB Console Port, Management Port, 2× USB3.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, ERPS, Static Routing, DHCP Server, DHCP Relay, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, hot swappable fan and power supply modules

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

8 MB

MAC address table

128000 entries

Switching capacity

820 Gbit/s

Forwarding rate

610.1 Mpps

Number of fans

4 fan(s)

Rack mounting

Yes

Stackable

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah

Switch layer

L2/L3

Cloud-managed

Yes

Web-based management

Yes

Switch type

Managed

ARP inspection

Yes

Multicast support

Yes

IP routing

Yes

Power over Ethernet (PoE)

No

10G support

Yes

Port mirroring

Yes

Virtual LAN features

MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Operating temperature (T-T)

-5 - 40 °C

Storage relative humidity (H-H)

5 - 90%

Rack mount kit

Yes

Quick start guide

Yes

Cables included

Power

SFP+ module slots quantity

26

Basic switching RJ-45 Ethernet ports type

No

SFP module slots quantity

26

USB Type-A ports quantity

2

Number of management ports

1 pc(s)

Console port

RJ-45

USB Type-C ports quantity

1

Redundant power supply (RPS) support

Yes

Number of power supply units

2

Power source

AC

AC input frequency

50/60 Hz

Management protocols

SNMPv1/v2c/v3

DHCP features

DHCP Option 82

IGMP snooping

Yes

SSH/SSL support

Yes

Static port security

Yes

MAC address filtering

Yes

Access Control List (ACL)

Yes

Depth

380 mm

Layer

Layer-2

Rackable

No

LAN-Port-Type

10Gigabit

Redundant-PSU

Yes

LAN-Ports

16
