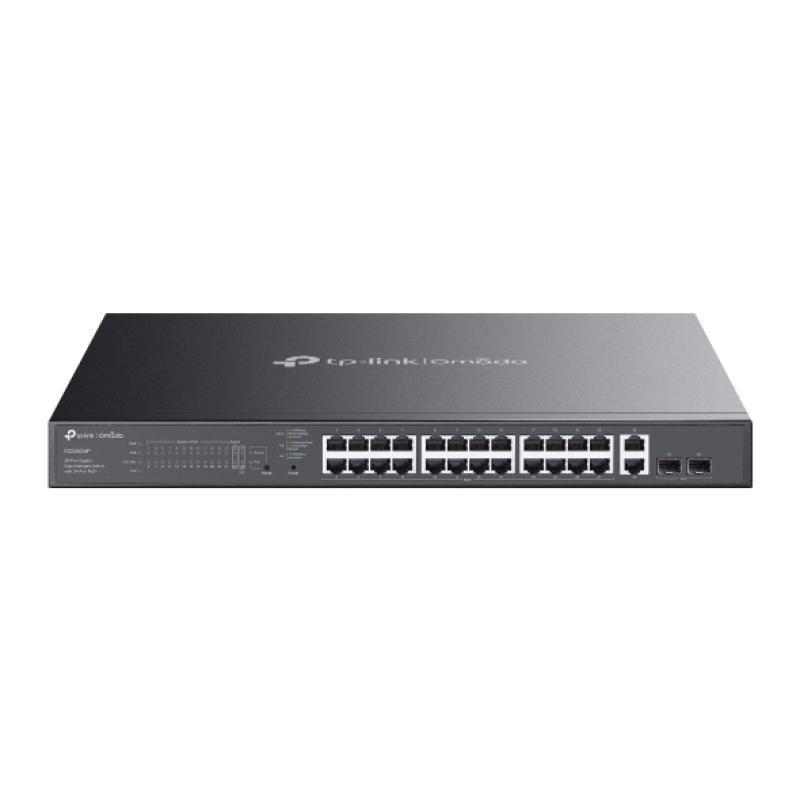

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ PORT: 24× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 2× Gigabit SFP Ports SPEC: 802.3at/af, 384W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Fast PoE

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ PORT: 24× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 2× Gigabit SFP Ports SPEC: 802.3at/af, 384W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Fast PoE, Perpetual PoE, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Certification

FCC, CE, RoHS

Jumbo frames support

Yes

MAC address table

8000 entries

Packet buffer memory

4 MB

Store-and-forward

Yes

Switching capacity

56 Gbit/s

Jumbo frames

15000

Forwarding rate

41.66 Mpps

LED indicators

Yes

Stackable

No

Number of fans

2 fan(s)

Rack mounting

Yes

Housing material

Metal

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Mean time between failures (MTBF)

224143 h

Flash memory

64 MB

Cloud-managed

Yes

Unified static configuration

Yes

Firmware upgradeable

Yes

Switch layer

L2

Web-based management

Yes

Switch type

Managed

Multicast support

Yes

10G support

No

Broadcast storm control

Yes

Number of VLANs

32

Fast leave

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X

Virtual LAN features

MTU VLAN, Port-based VLAN, Tagged VLAN

Port mirroring

Yes

Auto MDI/MDI-X

Yes

Power over Ethernet (PoE)

Yes

Link aggregation

Yes

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

1546.15 BTU/h

Operating temperature (T-T)

-5 - 45 °C

Quick start guide

Yes

Cables included

AC

Rack mount kit

Yes

Fanless

No

Noise level

46.2 dB

Gigabit Ethernet (copper) ports quantity

26

SFP+ module slots quantity

2

Basic switching RJ-45 Ethernet ports quantity

26

SFP module slots quantity

2

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power supply included

Yes

Surge protection

Yes

Surge protection voltage

6 kV

Power consumption (max)

454.8 W

Power source

AC

AC input frequency

50/60 Hz

Power over Ethernet plus (PoE+) ports quantity

24

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

384 W

Power over Ethernet (PoE) type supported

PoE+

IGMP snooping

Yes

DHCP features

DHCP client

Queue scheduling algorithms

Weighted Round Robin (WRR)

Depth

330 mm

Rackable

No

LAN-Port-Type

FastEthernet

LAN-Ports

8

Redundant-PSU

No
