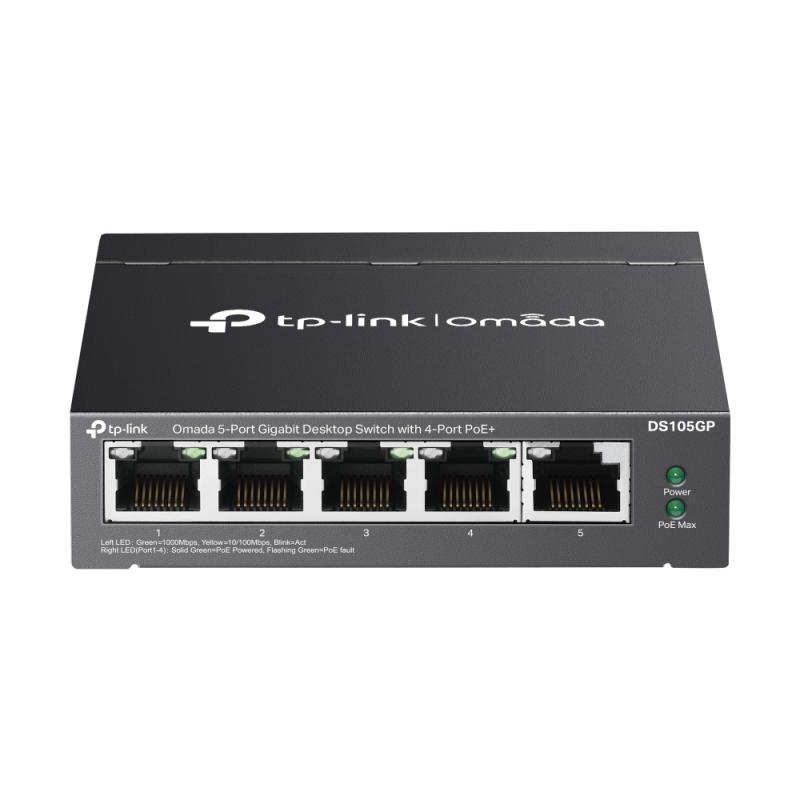

Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ PORT: 4× Gigabit PoE+ Ports, 1× Gigabit Non-PoE Port SPEC: 802.3af/at, 65 W PoE Power, Desktop Steel Case FEATURE: Plug and Play

Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ PORT: 4× Gigabit PoE+ Ports, 1× Gigabit Non-PoE Port SPEC: 802.3af/at, 65 W PoE Power, Desktop Steel Case FEATURE: Plug and Play

Jumbo frames support

Yes

MAC address table

2000 entries

Store-and-forward

Yes

Switching capacity

10 Gbit/s

Forwarding rate

74.4 Mpps

Jumbo frames

16

Reset button

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

Switch type

Unmanaged

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation

Yes

Auto MDI/MDI-X

Yes

10G support

No

Power over Ethernet (PoE)

Yes

Heat dissipation

254.01 BTU/h

Storage relative humidity (H-H)

5 - 90%

Rubber feet

Yes

Fanless

Yes

Power over Ethernet (PoE) ports quantity

4

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

DC input voltage

53.5 V

Input current

1.31 A

Power supply included

Yes

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

65 W

IGMP snooping

Yes

Montare in rack

Nu

PoE

Nu

Viteza Transfer

Gigabit

Management

Nu

Porturi SFP

N/A

Porturi RJ 45

4× Gigabit PoE+ Ports, 1× Gigabit Non-PoE Port

LAN-Port-Type

FastEthernet
