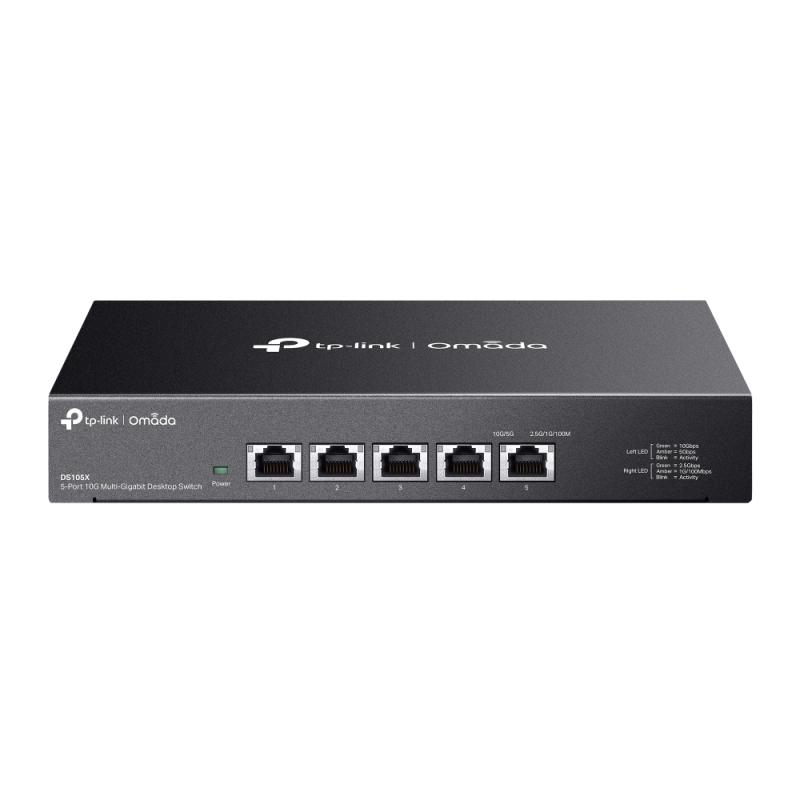

Omada 5-Port 10G Multi-Gigabit Desktop Switch PORT: 5× 10G RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play

Omada 5-Port 10G Multi-Gigabit Desktop Switch PORT: 5× 10G RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play

Compliance certificates

CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA

MAC address table

16000 entries

Store-and-forward

Yes

Packet buffer memory

12 MB

Switching capacity

100 Gbit/s

Forwarding rate

74.4 Mpps

Jumbo frames

12

Jumbo frames support

Yes

Stackable

No

Reset button

Yes

Housing material

Metal

Wall mountable

Yes

LED indicators

Activity, Link, Power

Ethernet LAN data rates

10,100,1000,2500,5000,10000 Mbit/s

Flow control support

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Switch type

Unmanaged

Multicast support

Yes

Power over Ethernet (PoE)

No

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

10G support

Yes

Copper ethernet cabling technology

10GBASE-T, 100BASE-TX, 1000BASE-T

Heat dissipation

85.65 BTU/h

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90%

Cables included

Power

Rubber feet

Yes

Plug and Play

Yes

Fanless

Yes

Basic switching RJ-45 Ethernet ports quantity

5

Power connector

DC-in jack

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Power consumption (max)

25.19 W

AC input frequency

50/60 Hz

Power source

AC

Power supply included

Yes

Input current

2 A

DC input voltage

12 V

IGMP snooping

Yes

Viteza Transfer

10G+

Management

Nu

Porturi RJ 45

5× 10G RJ45 Ports

Porturi SFP

5× 10G RJ45 Ports

Montare in rack

Nu

PoE

Nu

Height

35 mm

Width

226 mm

Depth

131.2 mm

Rackable

No

LAN-Port-Type

FastEthernet

LAN-Ports

8

Redundant-PSU

No
