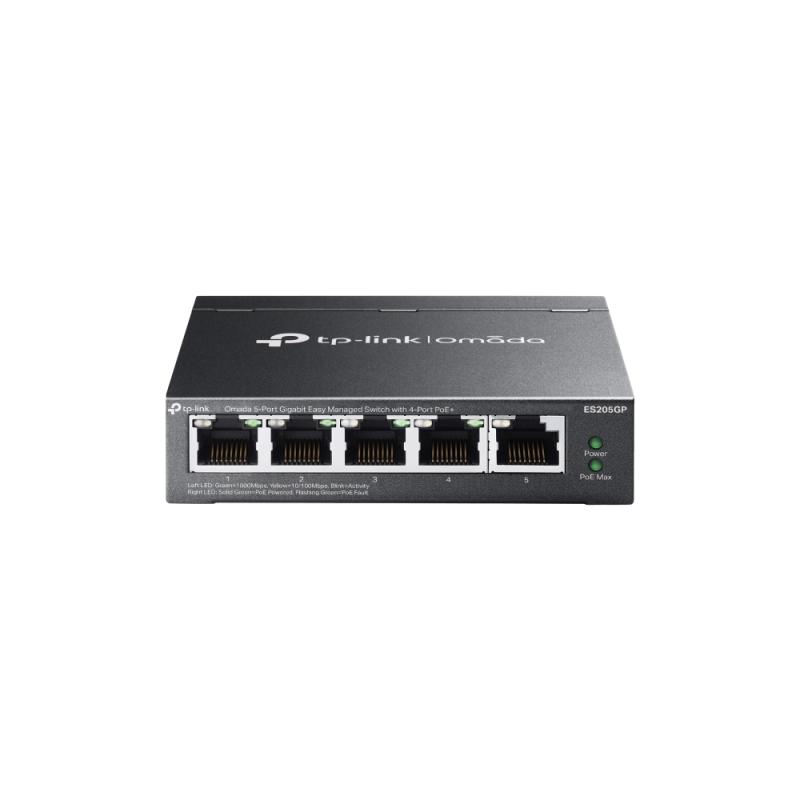

Omada 5-Port Gigabit Easy Managed Switch PORT: 5× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Integration with Omada SDN Controller, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Omada 5-Port Gigabit Easy Managed Switch PORT: 5× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Integration with Omada SDN Controller, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Jumbo frames support

Yes

MAC address table

8000 entries

Packet buffer memory

4 MB

Store-and-forward

Yes

Switching capacity

10 Gbit/s

Forwarding rate

7.4 Mpps

Jumbo frames

15

Reset button

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Networking standards

IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x

Switch type

Managed

Auto MDI/MDI-X

Yes

Port mirroring

Yes

Link aggregation

Yes

Power over Ethernet (PoE)

Yes

Auto-negotiation

Yes

10G support

No

Virtual LAN features

MTU VLAN, Port-based VLAN, Tagged VLAN

Storage relative humidity (H-H)

5 - 90%

Transmission distance (max)

0.25 km

Fanless

Yes

Basic switching RJ-45 Ethernet ports quantity

5

Power over Ethernet (PoE) ports quantity

4

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power supply included

Yes

DC input voltage

53.5 V

Power over Ethernet plus (PoE+) ports quantity

4

Total Power over Ethernet (PoE) budget

65 W

Power over Ethernet (PoE) power per port

30 W

DHCP features

DHCP client

IGMP snooping

Yes

Loop protection

Yes

LAN-Port-Type

FastEthernet
