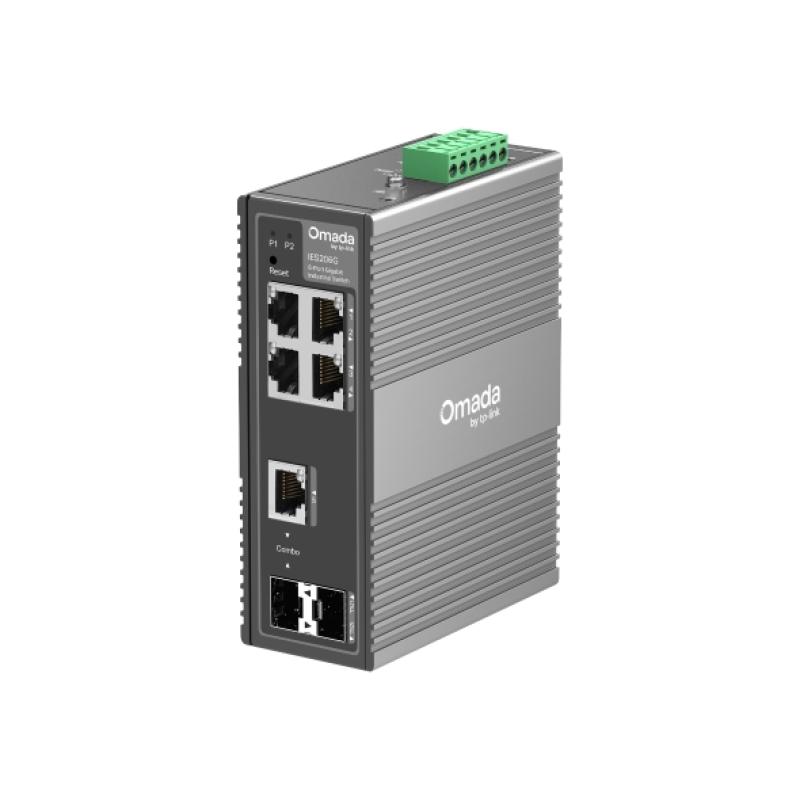

Omada 6-Port Gigabit Industrial Easy Managed Switch 4× Gigabit RJ45 Ports 1× Gigabit RJ45/SFP Combo Slot, 1× Gigabit SFP Slot Operating Temperature: -40~75°C (-40~167°F) IP40 Aluminum Casing Centralized Cloud Management

Omada 6-Port Gigabit Industrial Easy Managed Switch 4× Gigabit RJ45 Ports 1× Gigabit RJ45/SFP Combo Slot, 1× Gigabit SFP Slot Operating Temperature: -40~75°C (-40~167°F) IP40 Aluminum Casing Centralized Cloud Management

Certification

FCC, CE, RoHS

Store-and-forward

Yes

Jumbo frames

15000

Switching capacity

12 Gbit/s

Forwarding rate

8.93 Mpps

Jumbo frames support

Yes

MAC address table

8000 entries

DIN rail mounting

Yes

Stackable

No

Wall mountable

Yes

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Quality of Service (QoS) support

Yes

Flow control support

Yes

Web-based management

Yes

Switch type

Managed

Cloud-managed

Yes

Multicast support

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

10G support

No

Spanning tree protocol

Yes

Link aggregation

Yes

Power over Ethernet (PoE)

No

Port mirroring

Yes

Operating temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

5 - 95%

Storage temperature (T-T)

-40 - 85 °C

Storage relative humidity (H-H)

5 - 95%

Fanless

Yes

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

1

Basic switching RJ-45 Ethernet ports quantity

4

Combo SFP ports quantity

1

SFP+ module slots quantity

1

DC input voltage

9 - 60 V

Power source

DC

Power supply included

Yes

Redundant power supply (RPS) support

Yes

DHCP features

DHCP client

IGMP snooping

Yes

Width

129 mm

Depth

95 mm

Height

45 mm

Rackable

No

LAN-Port-Type

FastEthernet

Redundant-PSU

No

LAN-Ports

5
