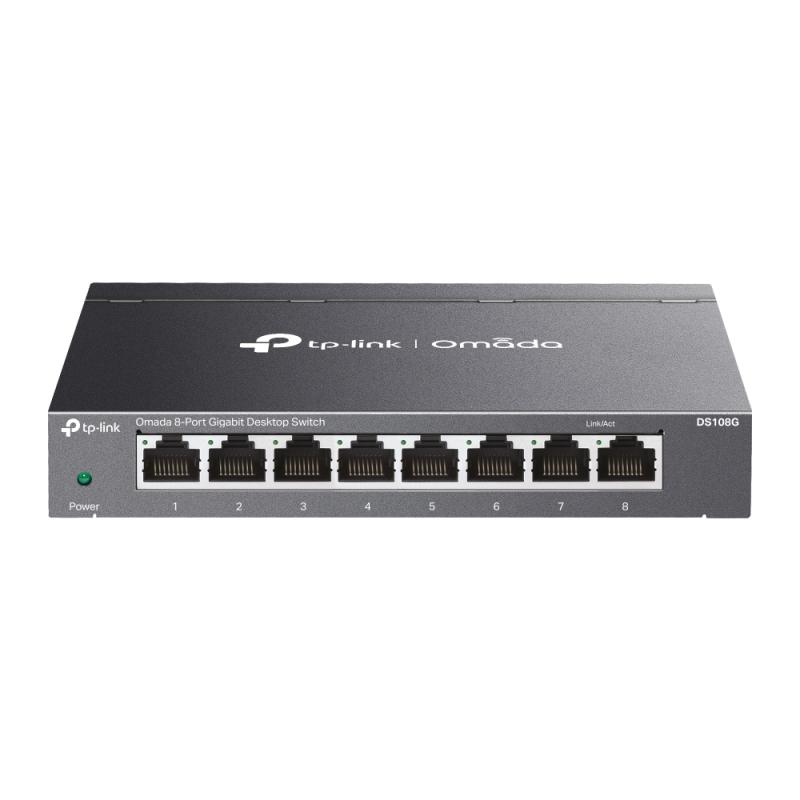

Omada 8-Port Gigabit Desktop Switch PORT: 8× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play

Omada 8-Port Gigabit Desktop Switch PORT: 8× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play

Compliance certificates

CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA

Jumbo frames

16

Jumbo frames support

Yes

Store-and-forward

Yes

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

MAC address table

4000 entries

Reset button

Yes

Housing material

Metal

Wall mountable

Yes

LED indicators

Activity, Link, Power

Ethernet LAN data rates

10,100,1000 Mbit/s

Quality of Service (QoS) support

Yes

Flow control support

Yes

Networking standards

IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Switch type

Unmanaged

Power over Ethernet (PoE)

No

Auto MDI/MDI-X

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation

Yes

10G support

No

Heat dissipation

13.37 BTU/h

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90%

Cables included

Power

Fanless

Yes

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

DC input voltage

5 V

Power source

DC

Power consumption (max)

3.92 W

Power supply included

Yes

Input current

0.6 A

IGMP snooping

Yes

Loop protection

Yes

Viteza Transfer

Gigabit

Management

Nu

Porturi SFP

N/A

Porturi RJ 45

8× Gigabit RJ45 Ports

Montare in rack

Nu

PoE

Nu

Width

158 mm

Height

25 mm

Depth

101 mm

LAN-Port-Type

FastEthernet
