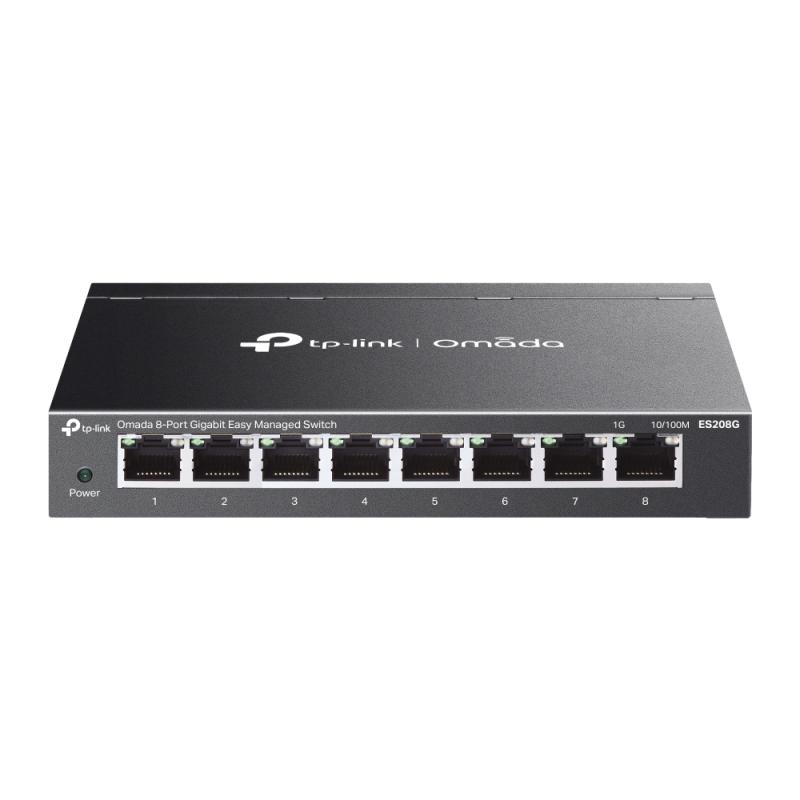

Omada 8-Port Gigabit Easy Managed Switch PORT: 8× Gigabit RJ45 Ports SPEC: Desktop Steel Case and Fanless FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Omada 8-Port Gigabit Easy Managed Switch PORT: 8× Gigabit RJ45 Ports SPEC: Desktop Steel Case and Fanless FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Packet buffer memory

4 MB

Store-and-forward

Yes

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

Jumbo frames

15000

Jumbo frames support

Yes

MAC address table

8000 entries

Rack mounting

No

Stackable

No

Wall mountable

Yes

LED indicators

Yes

Mean time between failures (MTBF)

1141726 h

Networking standards

IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q

Flash memory

64 MB

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Switch layer

L2

Web-based management

Yes

Switch type

Managed

Firmware upgradeable

Yes

Unified static configuration

Yes

Cloud-managed

Yes

Zero Touch Provisioning (ZTP)

Yes

Fast leave

Yes

Number of VLANs

32

Virtual LAN features

MTU VLAN, Port-based VLAN, Tagged VLAN

Port mirroring

Yes

Link aggregation

Yes

Auto MDI/MDI-X

Yes

Power over Ethernet (PoE)

No

10G support

No

Auto-negotiation

Yes

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

9.09 BTU/h

Operating temperature (T-T)

-5 - 45 °C

Package type

Box

Fanless

Yes

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

8

Gigabit Ethernet (copper) ports quantity

8

Surge protection voltage

6 kV

Power source

DC

Input current

0.6 A

Surge protection

Yes

DC input voltage

5 V

Power supply included

Yes

Power consumption (max)

2.7 W

IGMP snooping

Yes

Queue scheduling algorithms

Weighted Round Robin (WRR)

DHCP features

DHCP client

Loop protection

Yes

Height

25.4 mm

Depth

100.7 mm

Width

158 mm

Rackable

No

LAN-Port-Type

FastEthernet

LAN-Ports

8

Redundant-PSU

No
