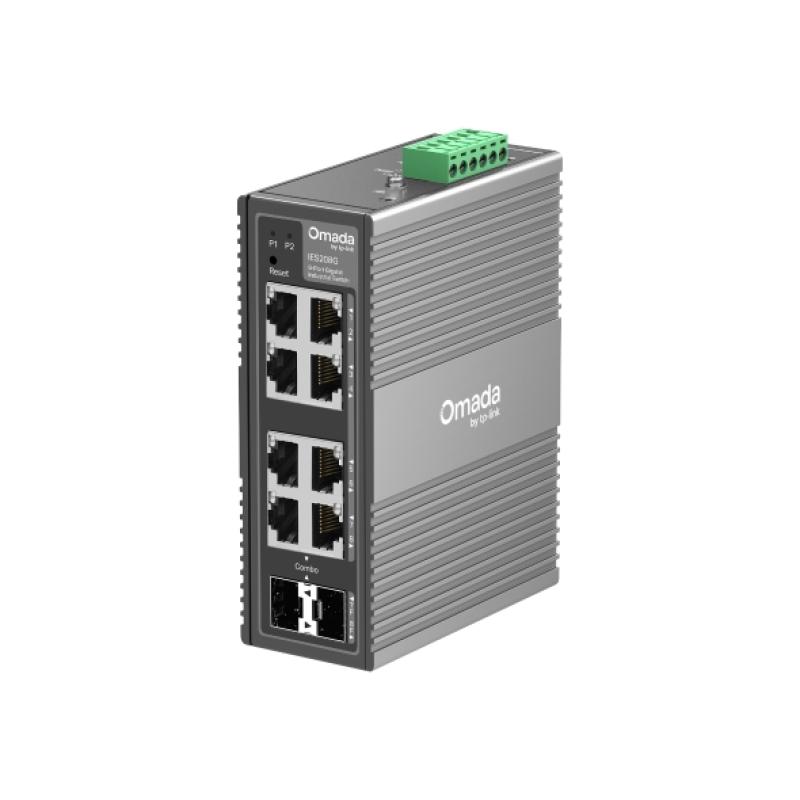

Omada 8-Port Gigabit Industrial Easy Managed Switch 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo) Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input Abundant Features: VLAN, QoS, and STP/RSTP Centralized Cloud Management via

Omada 8-Port Gigabit Industrial Easy Managed Switch 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo) Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input Abundant Features: VLAN, QoS, and STP/RSTP Centralized Cloud Management via the Web or Omada App† Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Jumbo frames support

Yes

MAC address table

8000 entries

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

Jumbo frames

15000

DIN rail mounting

Yes

Stackable

No

Wall mountable

Yes

Networking standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Quality of Service (QoS) support

Yes

Flow control support

Yes

Web-based management

Yes

Switch type

Managed

Cloud-managed

Yes

Port mirroring

Yes

Link aggregation

Yes

Power over Ethernet (PoE)

No

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

10G support

No

Broadcast storm control

Yes

Spanning tree protocol

Yes

Basic switching RJ-45 Ethernet ports quantity

6

Combo SFP ports quantity

2

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Redundant power supply (RPS) support

Yes

Power source

DC

DC input voltage

9.6 - 60 V

Static port security

Yes

IGMP snooping

Yes

Width

129 mm

Depth

95 mm

Height

45 mm

Rackable

No

LAN-Port-Type

FastEthernet

Redundant-PSU

No

LAN-Ports

5
