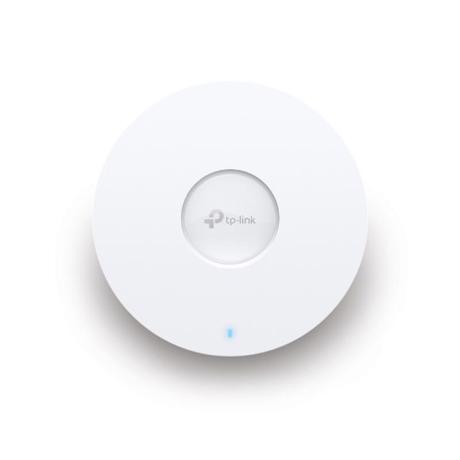

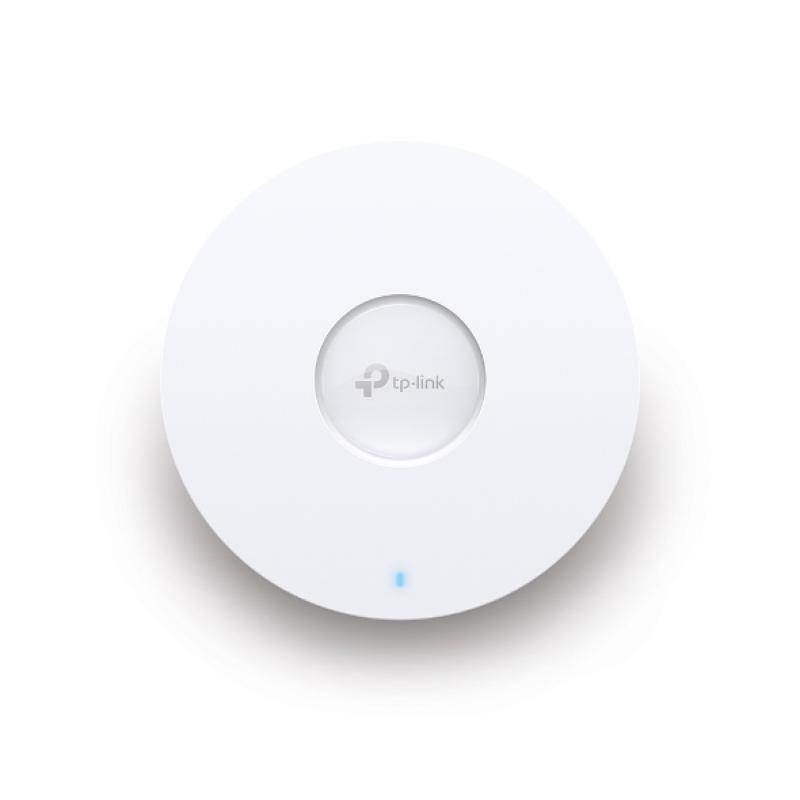

Omada AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point PORT: 1×2.5G RJ45 Port SPEED:1148Mbps at 2.4 GHz + 4804 Mbps at 5 GHz FEATURE: 802.3at POE+ and 12V DC (Power Adapter is not included), 4 ×Internal Antennas, MU-MIMO, 160MHz Supported, Seamless Roaming, Band Steering, Beamforming, Load

Omada AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point PORT: 1×2.5G RJ45 Port SPEED:1148Mbps at 2.4 GHz + 4804 Mbps at 5 GHz FEATURE: 802.3at POE+ and 12V DC (Power Adapter is not included), 4 ×Internal Antennas, MU-MIMO, 160MHz Supported, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, ,Centralized Management by Omada SDN Controller, Omada App

Antenna type

Internal

Maximum data transfer rate

2976 Mbit/s

Reset button

Yes

Stackable

No

Ethernet LAN data rates

10,100,1000 Mbit/s

MIMO

Yes

MIMO type

Multi User MIMO

Cabling technology

10/100/1000Base-T(X)

5 GHz

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Maximum data transfer rate (5 GHz)

2402 Mbit/s

Number of users

250 user(s)

Rate limiting

Yes

Band steering

Yes

Airtime Fairness (ATF)

Yes

2.4 GHz

Yes

Flow control support

Yes

BeamForming

Yes

6 GHz

No

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

Automatic channel selection

Yes

Automatic channel scanning

Yes

Spread spectrum method

OFDMA

Transmitting power (CE)

27 dBm

Transmitting power (FCC)

22 dBm

Fit AP mode features

Mesh networking

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h

Syslog

Yes

Web-based management

Yes

Firmware upgradeable

Yes

Power over Ethernet (PoE)

Yes

Storage relative humidity (H-H)

5 - 90%

Mounting kit

Yes

USB 2.0 ports quantity

0

DC voltage range

12 V

MAC address filtering

Yes

Security algorithms

HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3

Rackable

No

LAN-Port-Type

FastEthernet

LAN-Ports

8

Redundant-PSU

No
