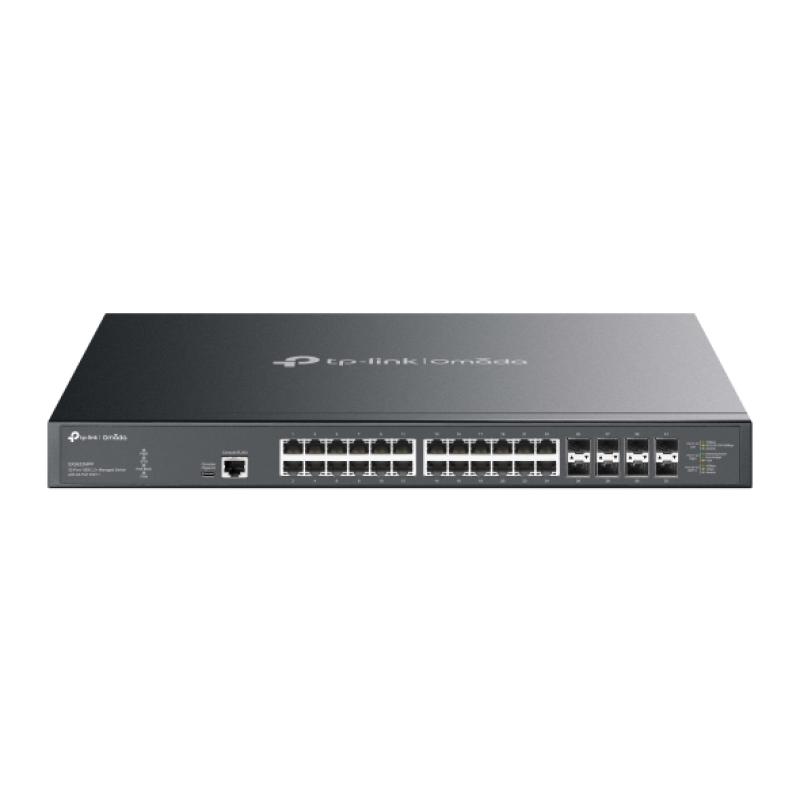

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: 24× 10G RJ45 PoE++ Ports, 8× 10G SFP+ Slots, RJ45/USB Type C Console Port SPEC: 802.3bt/at/af (up to 90W/port), 770 W PoE Power, 1U 19-inch Rack- mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, DHCP

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: 24× 10G RJ45 PoE++ Ports, 8× 10G SFP+ Slots, RJ45/USB Type C Console Port SPEC: 802.3bt/at/af (up to 90W/port), 770 W PoE Power, 1U 19-inch Rack- mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, DHCP Server, OAM, DDM, 802.1Q VLAN, QinQ, Fast PoE, Perpetual PoE, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, ERPS, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Packet buffer memory

24 MB

Jumbo frames support

Yes

Static route

Yes

Number of queues

8

MAC address table

32000 entries

Jumbo frames

9

Switching capacity

640 Gbit/s

Forwarding rate

240 Mpps

Number of fans

4 fan(s)

Stackable

Yes

Rack mounting

Yes

Form factor

DIN rail

LED indicators

Yes

Housing material

Metal

VLAN support

Yes

Quality of Service (QoS) support

Yes

Rate limiting

Yes

Firmware upgradeable

Yes

Switch layer

L2

Web-based management

Yes

System event log

Yes

Switch type

Managed

Unified static configuration

Yes

MIB support

RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

Cloud-managed

Yes

Multicast Listener Discovery (MLD) snooping

Yes

Multicast support

Yes

Number of VLANs

4000

Auto-negotiation

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Ethernet Ring Protection Switching (ERPS)

Yes

IPv4 routes

48

IPv6 routes

48

Power over Ethernet (PoE)

Yes

Link aggregation

Yes

10G support

Yes

Port mirroring

Yes

Auto MDI/MDI-X

Yes

Address Resolution Protocol (ARP) entries (max)

510

Virtual LAN features

MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN

Heat dissipation

3444.7 BTU/h

Operating temperature (T-T)

-5 - 45 °C

Storage relative humidity (H-H)

5 - 90%

Packaging content

Console Cable

Quick start guide

Yes

Cables included

Power

Mounting brackets included

Yes

Mounting bracket(s) included

Yes

Rack mount kit

Yes

Rubber feet

Yes

Screws included

Yes

Fanless

No

Fast Ethernet (copper) ports quantity

24

Console port

RJ-45/USB Type-C

2.5G Ethernet (copper) ports quantity

24

Installed SFP+ modules quantity

8

Basic switching RJ-45 Ethernet ports quantity

24

Gigabit Ethernet (copper) ports quantity

24

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

10G Ethernet (copper) ports quantity

24

Installed SFP modules quantity

8

Power saving mode (EEE)

Yes

AC input frequency

50/60 Hz

AC input voltage

110 - 240 V

Power source

AC/PoE

Power consumption (typical)

953.7 W

Power consumption (max)

1010.2 W

Power supply included

No

Power over Ethernet 4PPoE (PoE++) ports quantity

24

Power over Ethernet (PoE) power per port

90 W

Total Power over Ethernet (PoE) budget

770 W

Device link detection protocol (DLDP)

Yes

IPv4 & IPv6 features

Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert

Authentication

Guest VLAN

Security algorithms

HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS

Queue scheduling algorithms

Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)

IGMP snooping

Yes

DoS attack prevention

Yes

Access Control List (ACL)

Yes

CPU defense

Yes

Static port security

Yes

Authentication type

AAA, RADIUS, TACACS+

DHCP features

DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Sustainability organizations

Accountability

Depth

330 mm

Layer

Layer-2

Rackable

No

LAN-Port-Type

10Gigabit

Redundant-PSU

Yes

LAN-Ports

16
