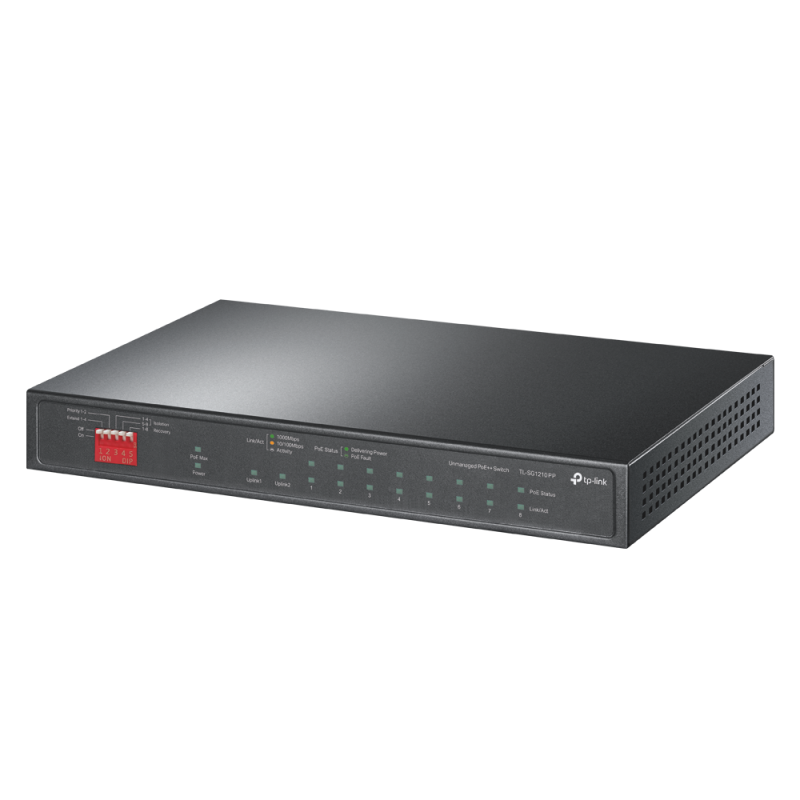

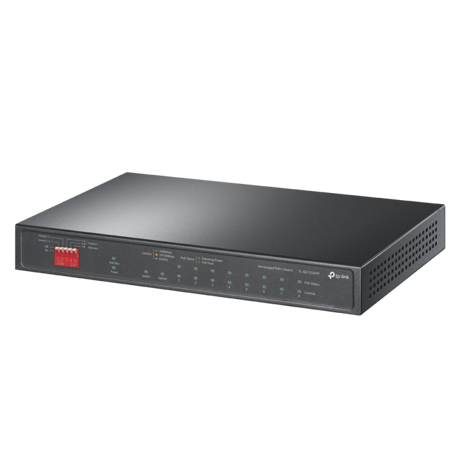

Switch Desktop 10-Port Gigabit with 6-Port PoE+ and 2-Port PoE++ PORT: 2× Gigabit PoE++ Ports, 6× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot SPEC: 802.3af/at/bt type3, 123 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting for Port1-4

Switch Desktop 10-Port Gigabit with 6-Port PoE+ and 2-Port PoE++ PORT: 2× Gigabit PoE++ Ports, 6× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot SPEC: 802.3af/at/bt type3, 123 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting for Port1-4, Priority Mode for Port1-2, Isolation Mode for Port1-4/5-8, PoE Auto Recovery for Port1-8, Plug and Play

Certification

FCC, CE, RoHS

Forwarding rate

1.488 Mpps

Switching capacity

20 Gbit/s

Store-and-forward

Yes

MAC address table

4000 entries

Stackable

No

Rack mounting

No

LED indicators

Yes

Housing material

Steel

Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Flow control support

Yes

Quality of Service (QoS) support

Yes

Harmonized System (HS) code

85176990

Switch type

Unmanaged

10G support

No

Auto-negotiation

Yes

MAC address auto-learning supported

Yes

Cable types supported

Cat3, Cat4, Cat5, Cat5e

MAC address auto-aging supported

Yes

Power over Ethernet (PoE)

Yes

Auto MDI/MDI-X

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX

Heat dissipation

482.17 BTU/h

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90%

Cables included

AC

Package type

Box

Fanless

Yes

Installed SFP+ modules quantity

0

Installed SFP modules quantity

0

Basic switching RJ-45 Ethernet ports quantity

10

Gigabit Ethernet (copper) ports quantity

10

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

1

Input current

2.43 A

Input voltage

53.5 V

AC input frequency

50 Hz

AC input voltage

90 - 220 V

Power consumption (max)

144.1 W

Power source

DC/PoE

Power supply included

Yes

Number of power supply units

1

Power over Ethernet plus (PoE+) ports quantity

2

Total Power over Ethernet (PoE) budget

123 W

Power over Ethernet 4PPoE (PoE++) ports quantity

6

IGMP snooping

Yes

Width

209 mm

Height

26 mm

Depth

126 mm

Layer

Unmanaged

Rackable

No

LAN-Port-Type

Gigabit

LAN-Ports

8

Redundant-PSU

No
