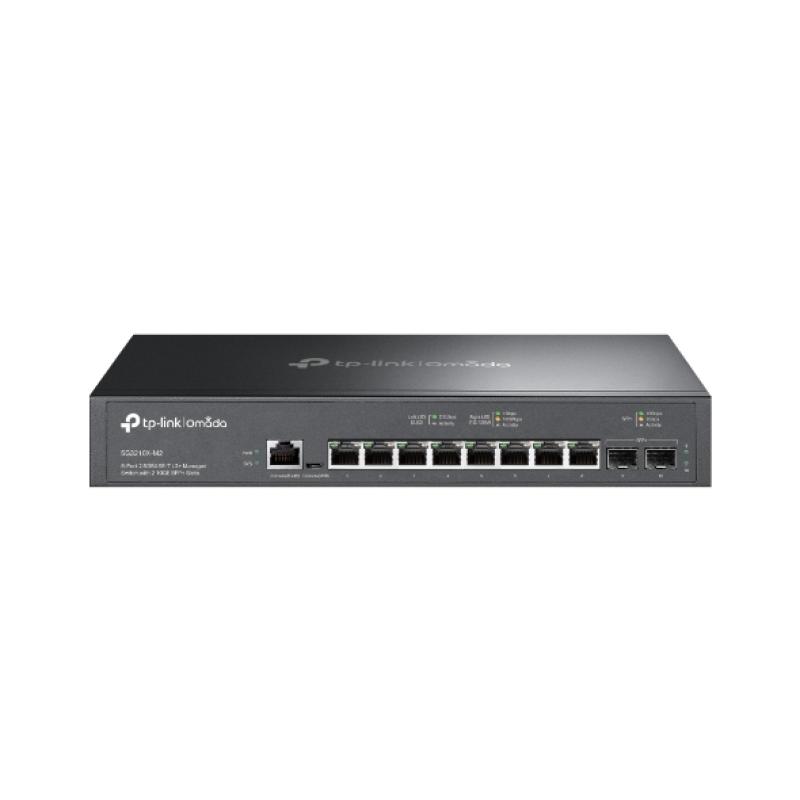

Switch TP-Link SG3210X-M2, 8 x porturi RJ 45, 2 x SFP+, viteza LAN 100/1000/2500 MBps, Layer L2+, capacitate 80 Gbps, dimensiuni 294 × 180 × 44 mm

Switch TP-Link SG3210X-M2, 8 x porturi RJ 45, 2 x SFP+, viteza LAN 100/1000/2500 MBps, Layer L2+, capacitate 80 Gbps, dimensiuni 294 × 180 × 44 mm

Certification

CE, FCC, RoHS

Jumbo frames support

Yes

Static route

Yes

Jumbo frames

9000

MAC address table

16000 entries

Packet buffer memory

12 MB

Switching capacity

80 Gbit/s

Forwarding rate

59.52 Mpps

Number of static routes

48

Number of IP interfaces

16

Form factor

1U

Number of fans

2 fan(s)

Rack mounting

Yes

LED indicators

Yes

Ethernet LAN data rates

100,1000,2500 Mbit/s

Rate limiting

Yes

Flow control support

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1D, IEEE 802.1s, IEEE 802.1w

Harmonized System (HS) code

85176990

MIB support

RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Cloud-managed

Yes

Web-based management

Yes

System event log

Yes

Switch type

Managed

Switch layer

L2+

Traffic classification

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

Multicast support

Yes

Multicast Listener Discovery (MLD) snooping

Y

Virtual LAN features

MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

IP routing

Yes

Number of VLANs

4000

Broadcast storm control

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

10G support

Yes

Port mirroring

Yes

Link aggregation

Yes

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

51.18 BTU/h

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Quick start guide

Yes

Cables included

AC

Package height

80 mm

Package weight

2.84 kg

Package width

528 mm

Package type

Box

Package depth

250 mm

Fanless

Yes

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

Installed SFP+ modules quantity

0

2.5G Ethernet (copper) ports quantity

8

Power connector

AC-in jack

SFP module slots quantity

2

Installed SFP modules quantity

0

Basic switching RJ-45 Ethernet ports quantity

8

Console port

RJ-45/micro-USB

SFP+ module slots quantity

2

Power source

AC

AC input voltage

100 - 240 V

Power consumption (typical)

15 W

Power supply included

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

Management protocols

SNMPv1/v2c/v3, SNTP

SSH/SSL support

Yes

Loop protection

Yes

Static port security

Yes

BPDU filtering/protection

Yes

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Security algorithms

HTTPS, SSH, SSH-2, SSL/TLS

IP-MAC-Port binding

Yes

Authentication

MAC-based authentication, Port-based authentication

Authentication type

AAA, TACACS+

Queue scheduling algorithms

SP, WRR+SP, Weighted Round Robin (WRR)

Password protection

Yes

MAC address filtering

Yes

Access Control List (ACL)

Yes

IGMP snooping

Yes

Depth

180 mm

Width

29.4 mm

LAN-Port-Type

FastEthernet
