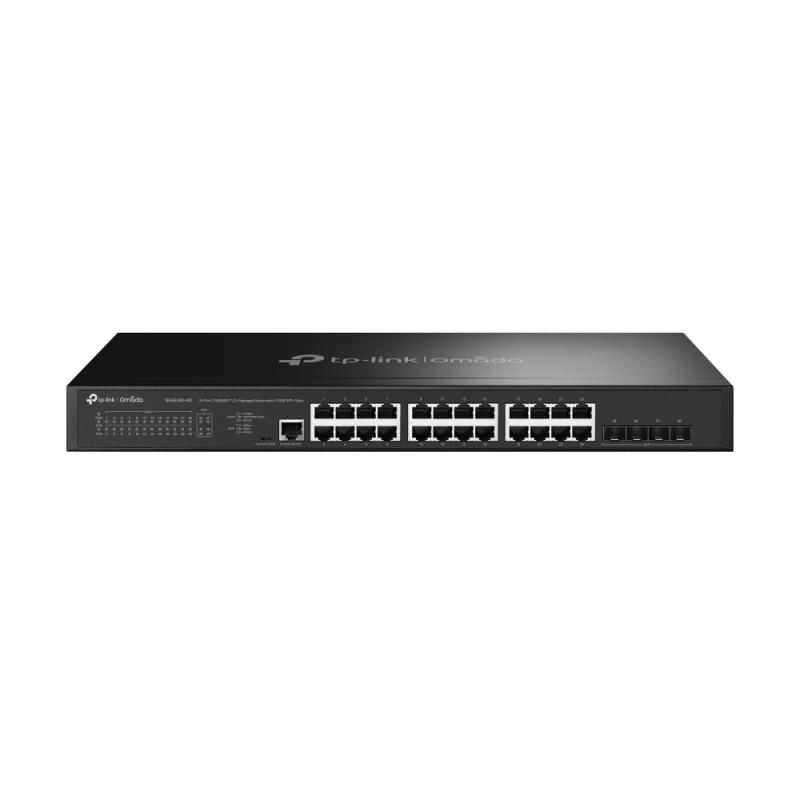

TL-SG3428X-M2 "JetStream™ 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ

"JetStream™ 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"

Certification

CE, FCC, RoHS

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Switching capacity

200 Gbit/s

Forwarding rate

148.8 Mpps

Jumbo frames support

Yes

Static route

Yes

Jumbo frames

9000

MAC address table

32000 entries

Store-and-forward

Yes

Number of static routes

48

Packet buffer memory

16 MB

Number of fans

1 fan(s)

Rack mounting

Yes

Stackable

No

Form factor

1U

LED indicators

Yes

Networking standards

IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z

Flow control support

Yes

Rate limiting

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

System event log

Yes

Switch type

Managed

Switch layer

L2+

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

MIB support

Yes

Cloud-managed

Yes

Multicast support

Yes

Multicast Listener Discovery (MLD) snooping

Y

IPv4 routes

48

IPv6 routes

48

Head-of-line (HOL) blocking

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Active link detection

Yes

10G support

Yes

Port mirroring

Yes

Policy-based routing

Yes

Power over Ethernet (PoE)

No

Link aggregation

Yes

Virtual LAN features

Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Heat dissipation

154.38 BTU/h

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90%

Quick start guide

Yes

Cables included

LAN (RJ-45)

Console port

RJ-45/micro-USB

SFP+ module slots quantity

4

2.5G Ethernet (copper) ports quantity

24

Installed SFP modules quantity

0

SFP module slots quantity

4

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

Installed SFP+ modules quantity

0

Power connector

AC-in jack

Power supply included

Yes

Power source

AC

Power consumption (max)

45.1 W

AC input voltage

100 - 240 V

GARP VLAN Registration Protocol (GVRP)

Yes

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Management protocols

SNMP v1/v2c/v3, SNTP

IPv4 FIB entries

100

IPv6 FIB entries

100

Authentication type

AAA, RADIUS, TACACS+

Authentication

Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

IP-MAC-Port binding

Yes

BPDU filtering/protection

Yes

SSH/SSL support

Yes

Loop protection

Yes

Access Control List (ACL)

Yes

IGMP snooping

Yes

Depth

180 mm

LAN-Ports

24

Layer

Layer-2

Rackable

Yes

LAN-Port-Type

Gigabit

Redundant-PSU

Yes
