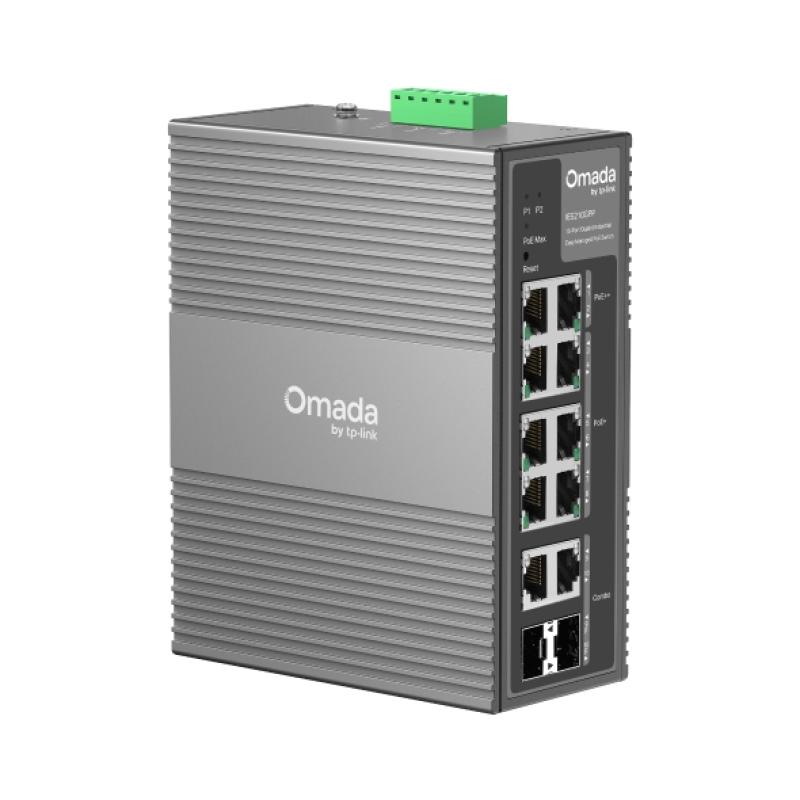

TP-Link Omada IES210GPP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

TP-Link Omada IES210GPP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 12 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail

Jumbo frames support

Yes

MAC address table

8000 entries

Switching capacity

20 Gbit/s

Store-and-forward

Yes

Jumbo frames

15000

Forwarding rate

1.488 Mpps

Packet buffer memory

4000 MB

Form factor

DIN rail

Product colour

Grey

LED indicators

Yes

Rack mounting

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Yes

Quality of Service (QoS) support

Yes

Flow control support

Yes

Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Cloud-managed

Yes

Web-based management

Yes

Switch type

Managed

Multicast support

Yes

Port mirroring

Yes

Link aggregation

Yes

Number of VLANs

4000

Power over Ethernet (PoE)

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

10G support

No

Broadcast storm control

Yes

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

2

Basic switching RJ-45 Ethernet ports quantity

8

DC input voltage

12 - 57 V

Power source

DC

Total Power over Ethernet (PoE) budget

240 W

Power over Ethernet plus (PoE+) ports quantity

6

Power over Ethernet 4PPoE (PoE++) ports quantity

2

Loop protection

Yes

DHCP features

DHCP client

IGMP snooping

Yes

Depth

120 mm

Height

60 mm

Width

155 mm
