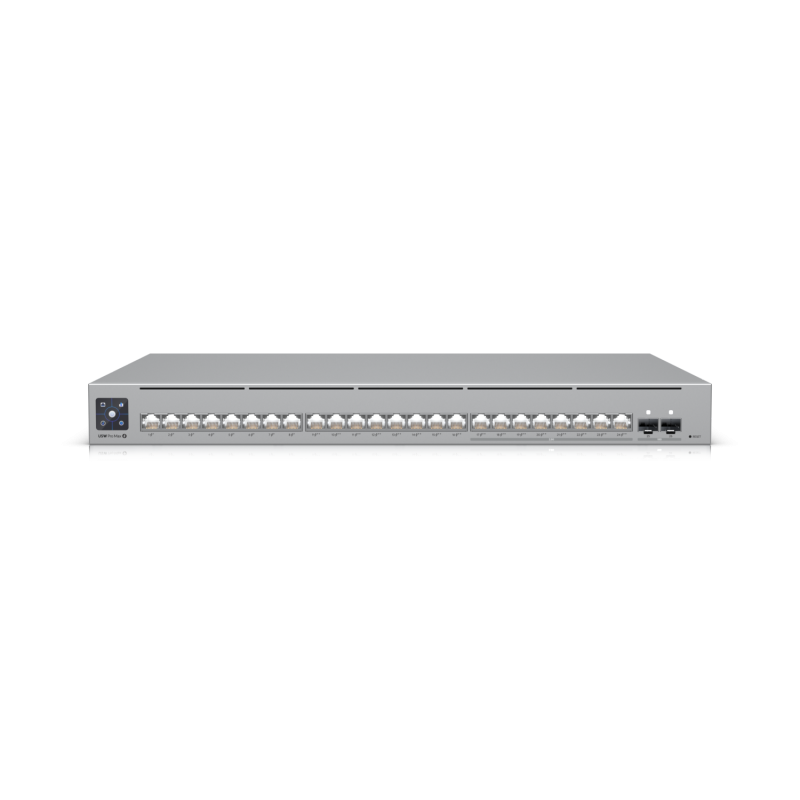

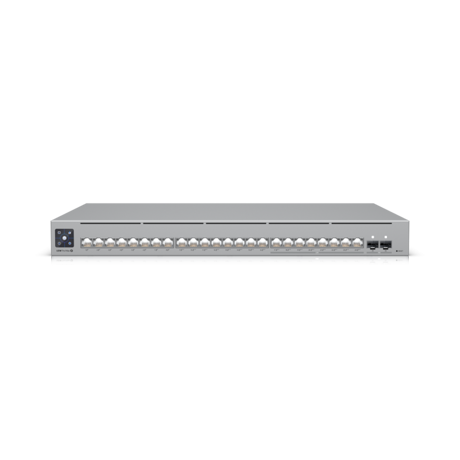

UBIQUITI UNIFI PRO MAX SWITCH 24-PORTPOE, interfata de retea (16) porturi GbE RJ45, (8) porturi 1/2,5 GbE RJ45, (2) porturi 10G SFP+, capacitate comutare 112 Gbps, AC/DC, internă, 450W, PoE disponibil 400W

UBIQUITI UNIFI PRO MAX SWITCH 24-PORTPOE, interfata de retea (16) porturi GbE RJ45, (8) porturi 1/2,5 GbE RJ45, (2) porturi 10G SFP+, capacitate comutare 112 Gbps, AC/DC, internă, 450W, PoE disponibil 400W

Compliance certificates

CE, Federal Communications Commission (FCC)

Switching capacity

112 Gbit/s

Throughput

56 Gbit/s

Display type

LCM

Product colour

Grey

Housing material

SGCC

LED indicators

Link, Network, Speed, Status

Stackable

Yes

Backlight display

Yes

Reset button

Yes

Rack mounting

Yes

VLAN support

Yes

Switch type

Managed

Switch layer

L3

10G support

Yes

Power over Ethernet (PoE)

Yes

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

-5 - 40 °C

Cables included

Power

Rack mount kit

Yes

SFP module slots quantity

2

Installed SFP+ modules quantity

2

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

Basic switching RJ-45 Ethernet ports quantity

24

10G Ethernet (copper) ports quantity

2

Gigabit Ethernet (copper) ports quantity

16

2.5G Ethernet (copper) ports quantity

8

Power connector

AC/DC

Installed SFP modules quantity

2

Power over Ethernet (PoE) ports quantity

8

SFP+ module slots quantity

2

Power over Ethernet (PoE) voltage

57 V

AC input frequency

50/60 Hz

Power source

AC/DC

Power consumption (max)

50 W

AC input voltage

100-240 V

Redundant power supply (RPS) support

Yes

Power supply included

Yes

Power over Ethernet plus (PoE+) ports quantity

8

Power over Ethernet 4PPoE (PoE++) ports quantity

8

Total Power over Ethernet (PoE) budget

400 W

Power over Ethernet (PoE) power per port

15.4 W

Sustainability compliance

Yes

Width

442.4 mm

Height

437 mm

Depth

325 mm

Weight

5.1 kg

LAN-Ports

24

Layer

Layer-2

Rackable

Yes

LAN-Port-Type

Gigabit

Redundant-PSU

No
