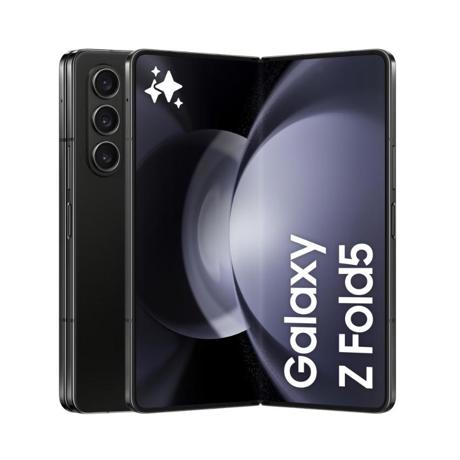

Samsung Z FOLD5 5G F946B 7.6" 12GB 512GB DualSIM Phantom Black

Samsung Z FOLD5 5G F946B 7.6" 12GB 512GB DualSIM Phantom Black

Speakers

stereo

Wireless charging

Yes

Browsing time (Wi-Fi)

18 h

Wireless video playback time

21 h

Browsing time (4G)

17 h

Battery capacity

4400 mAh

Talk time (4G)

40 h

Wireless audio playback time

73 h

Second front camera field of view (FOV) angle

80°

Image stabilizer

Yes

Image stabilizer type

Optical Image Stabilization (OIS)

Optical zoom

3x

Maximum frame rate

960 fps

Digital zoom

30x

Second rear camera sensor size

1/3.21

Front camera field of view (FOV) angle

85°

Front camera type

Dual camera

Third rear camera sensor size

1/3.94

Third rear camera resolution (numeric)

10 MP

Rear camera field of view (FOV) angle

85°

Third rear camera field of view (FOV) angle

36°

Second front camera resolution (numeric)

4 MP

Second front camera aperture number

1.8

Second front camera pixel size

2 µm

Rear camera resolution

6120 x 8160 pixels

Video recording modes

720p, 1080p, 2160p, 4320p

Rear camera resolution (numeric)

50 MP

Front camera resolution (numeric)

10 MP

Rear camera sensor size

1/1.56

Second rear camera resolution (numeric)

12 MP

Rear camera pixel size

1 µm

Second rear camera pixel size

1.12 µm

Third rear camera pixel size

1 µm

Second rear camera field of view (FOV) angle

123°

Front camera sensor size

1/3.24

Front camera pixel size

1.22 µm

Flash type

LED

Video capture resolution (max)

4320 x 7680 pixels

Front camera aperture number

2.2

Rear camera type

Triple camera

Third rear camera aperture number

2.4

Second rear camera aperture number

2.2

Rear camera aperture number

1.8

Auto focus

Yes

Panorama

Yes

Time lapse mode

Yes

Rear camera flash

Yes

Portrait mode

Yes

Resolution at capture speed

1280x720@30fps, 1920x1080@30fps, 1920x1080@60fps, 3840x2160@30fps, 3840x2160@60fps, 7680x4320@30fps

Form factor

Clamshell

Protection features

Water resistant

International Protection (IP) code

IPX8

Colour name

Phantom Black

Housing material

Aluminium

Brand specific technologies

Always-on display

Second display

Yes

Display diagonal

19.3 cm (7.6)

Display resolution

2176 x 1812 pixels

Display brightness

1200 cd/m²

Second display type

Dynamic AMOLED 2X

Second display refresh rate

120 Hz

Second display diagonal

15.8 cm (6.2)

Second display resolution

2316 x 904 pixels

Pixel density

374 ppi

Maximum display brightness (Outdoor)

1750 cd/m²

Second display brightness

1000 cd/m²

Gorilla Glass version

Gorilla Glass Victus 2

Maximum refresh rate

120 Hz

Display glass type

Gorilla Glass

Panel type

OLED

Rounded display corners

Yes

Screen shape

Flat

Display number of colours

16 million colours

Display technology marketing name

Dynamic AMOLED 2X

Position location

Yes

Internal storage capacity

512 GB

RAM capacity

12 GB

Video formats supported

3G2, 3GP, AVI, FLV, M4V, MKV, MP4, WEBM

Equalizer

Yes

Galileo

Yes

Quasi-Zenith Satellite System (QZSS)

Yes

BeiDou

Yes

GLONASS

Yes

Wi-Fi Direct

Yes

5G standard

Sub6 FDD, Sub6 TDD

3G bands supported

850,900,1900,2100 MHz

4G bands supported

700,800,850,900,1500,1800,1900,2100,2300,2500,2600 MHz

SIM card capability

Dual SIM

Mobile network generation

5G

SIM card type

NanoSIM + eSIM

4G standard

LTE-TDD & LTE-FDD

MIMO

Yes

Wi-FI

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

5G bands supported

700,800,850,900,1800,1900,2100,2300,2500,2600,3500,3700 MHz

3G standards

UMTS, WCDMA

Modulation

1024-QAM

Processor family

Qualcomm Snapdragon

Processor model

8 Gen 2

USB On-The-Go support

Yes

Face recognition

Yes

Fingerprint reader

Yes

Fast charging

Yes

USB connector type

USB Type-C

Headphone connectivity

USB Type-C

USB version

3.2 Gen 1 (3.1 Gen 1)

Processor cores

8

Processor boost frequency

3.36 GHz

Barometer

Yes

Ambient light sensor

Yes

Accelerometer

Yes

Proximity sensor

Yes

Gyroscope

Yes

Hall sensor

Yes

Geomagnetic sensor

Yes

Operating system installed

Android 13

Platform

Android

User memory

453.3 GB

Weight

253 g

Depth

61 mm

Width

129.9 mm

Folded width

6.71 cm

Folded depth

1.34 cm

Folded height

15.5 cm

Height

154.9 mm
