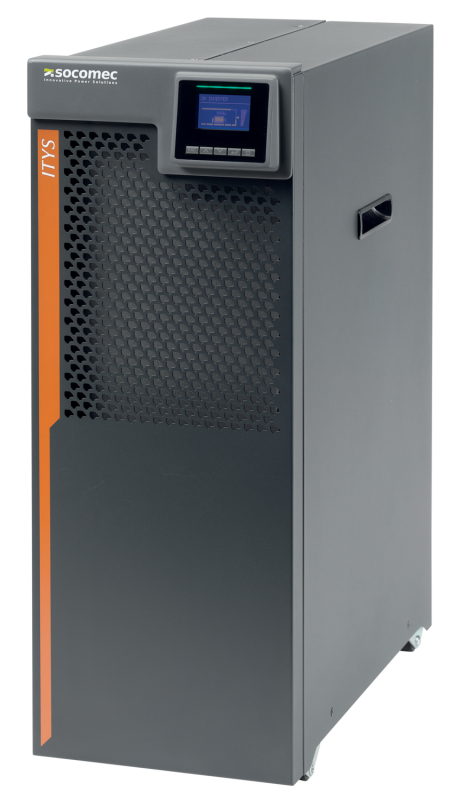

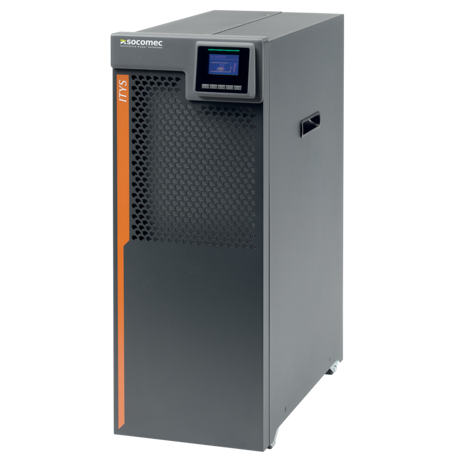

SOCOMEC ITYS 10kVA VFI UPS 1/1 PF=1 WI

SOCOMEC ITYS 10kVA VFI UPS 1/1 PF=1 WI

Battery technology

Sealed Lead Acid (VRLA)

Battery voltage

192 V

Charging current

12 A

Typical backup time at full load

5.8 min

Certification

IEC/EN 62040-2, AS 62040.2 IEC/EN 62040-3 CE, RCM (E2376)

Product colour

Black, Grey, Orange

Display type

LCD

Control type

Buttons

International Protection (IP) code

IP20

LED indicators

Yes

Cooling type

Active

Built-in fan

Yes

Form factor

Tower

Input operation voltage (max)

276 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Emergency Power Off (EPO)

Yes

UPS topology

Double-conversion (Online)

Crest factor

3:1

Input power factor

0.99

Input operation voltage (min)

160 V

Input frequency

40/70 Hz

Output power factor

1

Power protection features

Short circuit

ECO mode

Yes

Output frequency

50/60 Hz

Number of output phases

1

Efficiency (ECO mode)

98%

Efficiency

95%

Noise level

55 dB

Waveform

Sine

Output power capacity

8.5 kVA

Output power

8500 W

Number of input phases

3

Country of origin

China

Operating relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 40 °C

Operating altitude

0 - 1000 m

Manual

Yes

Ethernet LAN (RJ-45) ports

1

USB port type

USB Type-B

RS-232 ports

1

Safety

IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2

Width

225 mm

Depth

469 mm

Height

596 mm

Weight

58 kg
