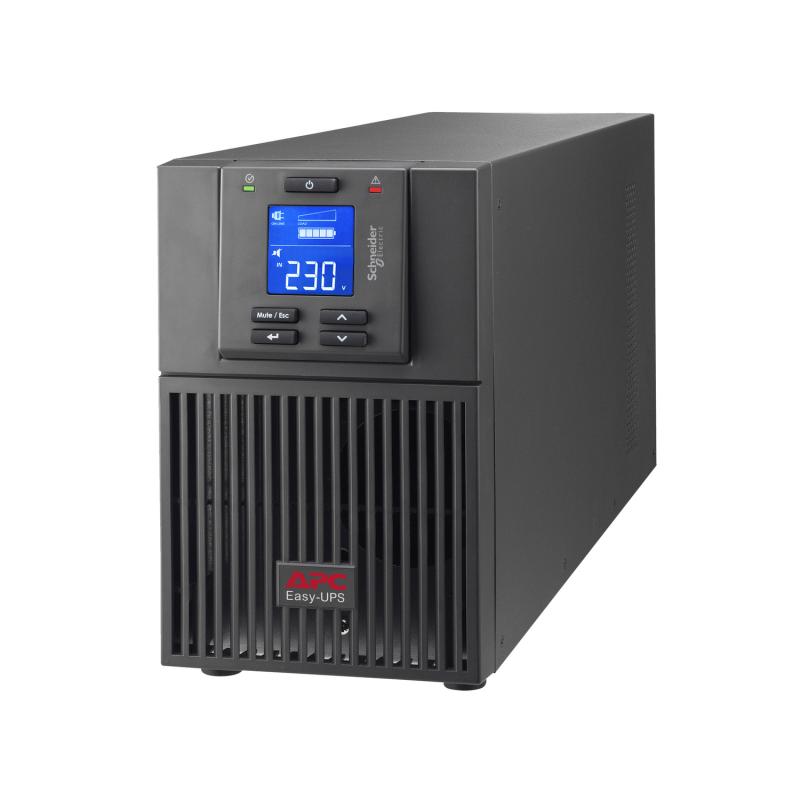

APC Easy UPS On-Line SRV 1000VA 230V

APC Easy UPS On-Line SRV 1000VA 230V

Battery recharge time

4 h

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Battery voltage

24 V

Certification

CE UKCA TISI

Display type

LCD

Cable length

1.5 m

LED indicators

Status

Control type

Buttons

International Protection (IP) code

IP20

Form factor

Tower

Waveform

Sine

ECO mode

Yes

Surge protection

Yes

Audible alarm(s)

Yes

Efficiency

88%

Output power

900 W

Output frequency

50/60 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output power capacity

1 kVA

Audible alarm modes

Low battery alarm, Overload alarm

UPS topology

Double-conversion (Online)

Input frequency

40 - 70 Hz

Crest factor

3:1

Output voltage Total Harmonic Distortion (THD)

3%

Input operation voltage (min)

110 V

Detachable power cord

Yes

Input operation voltage (max)

285 V

Surge energy rating

945 J

Heat dissipation

380 BTU/h

Power source type

AC

Noise level

50 dB

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-20 - 50 °C

Operating temperature (T-T)

0 - 40 °C

Operating altitude

0 - 3000 m

Storage relative humidity (H-H)

0 - 95%

Non-operating altitude

0 - 15000 m

Rack mount kit

No

Cables included

Input power cable, Output power cable, RS-232, USB cable

Package height

330 mm

Package width

235 mm

Package depth

365 mm

Package weight

10.9 kg

AC outlets quantity

3 AC outlet(s)

Emergency Power Off (EPO) connector

Yes

RS-232 ports

1

AC outlet types

C13 coupler

Power plug

C14 coupler

USB port type

USB Type-B

Width

145 mm

Weight

9.6 kg

Depth

288 mm

Height

2.23 mm

Rackable

No

UPS-Management

No
