UPS APC Easy UPS SMV 750 VA Line Interactive 525 Watts / 750VA 230V

Max Configurable Power (Watts)  525 Watts/750VA
Output Frequency (not synced) 50/60 Hz +/-1 Hz  Topology Line Interactive
Waveform type Sine wave Transfer Time 2ms typical

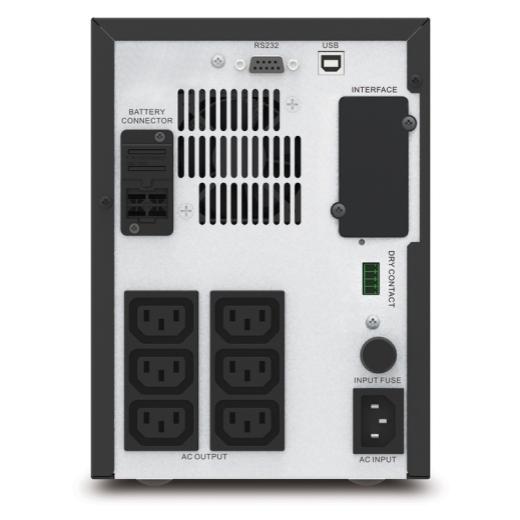

Output Connections (6) IEC 320 C13 (Battery Backup) Input Connections  IEC-320 C14

Battery capacity

7 Ah

Cold start

Yes

Battery recharge time

4 h

Battery technology

Sealed Lead Acid (VRLA)

Battery voltage

12 V

Number of batteries supported

2

Battery life (max)

5 year(s)

International Protection (IP) code

IP20

LED indicators

Yes

Display type

LCD

Product colour

Black

Form factor

Tower

Automatic Voltage Regulation (AVR)

Yes

Output power capacity

0.75 kVA

Input frequency

45/65 Hz

Input operation voltage (max)

295 V

Crest factor

3:1

Output operation voltage (max)

230 V

Input operation voltage (min)

160 V

Output operation voltage (min)

230 V

Audible alarm modes

Alarm when on battery, Low battery alarm, Overload alarm

Output power

525 W

Output voltage regulation

-1 - 1%

Audible alarm(s)

Yes

UPS topology

Line-Interactive

Output frequency

50/60 Hz

Power protection features

Overload, Short circuit

Waveform

Sine

Noise level

45 dB

Maximum current

8 A

Harmonized System (HS) code

85078000

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-10 - 40 °C

Operating temperature (T-T)

0 - 40 °C

Operating altitude

0 - 3000 m

Storage relative humidity (H-H)

0 - 95%

Cables included

USB cable

Manual

Yes

AC outlets quantity

6 AC outlet(s)

AC outlet types

IEC 320

Weight

1.36 kg

Depth

410 mm

Battery width

27.2 cm

Battery depth

50.8 cm

Battery height

33.9 cm

Width

160 mm

Height

220 mm

Battery weight

16.6 kg

UPS-Management

Yes

Rackable

No
