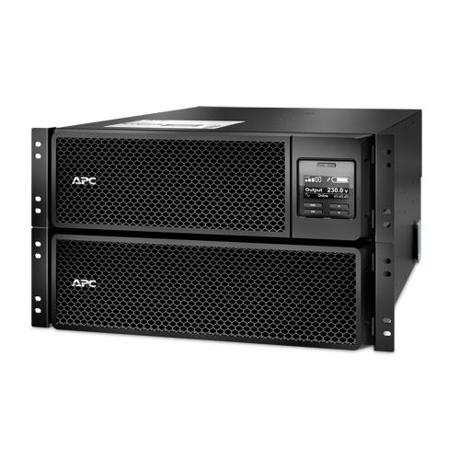

UPS APC Smart-UPS SRT online dubla-conversie 10kVA / 10kW 6 conectori C13 4 conectori C19 extended runtime rackabil 6U,3 ani garantie echipament si 2 ani garantie baterie

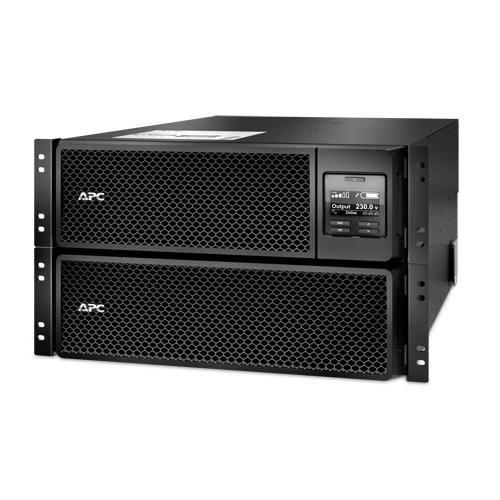

APC Smart-UPS SRT 10000VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card



Output power capacity

10.0kWatts / 10.0kVA

Rack Height

6U

Output Connections

(3) IEC Jumpers (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

(6) IEC 60320 C13 (Battery Backup)

(4) IEC 60320 C19 (Battery Backup)

(4) IEC 320 C19 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V, 400V 3PH

Input Connections

Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)




Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Hot-swap battery

Yes

Automatic battery test

Yes

Cold start

Yes

Battery capacity

1805 VAh

Typical backup time at full load

3.8 min

Typical backup time at half load

11.5 min

Battery recharge time

3 h

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Certification

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

Display type

LCD

LED indicators

Yes

Rack capacity

6U

Form factor

Rackmount/Tower

Auto-restart

Yes

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Emergency Power Off (EPO)

Yes

UPS topology

Double-conversion (Online)

Input operation voltage (min)

100 V

Input frequency

40 - 70 Hz

Surge energy rating

480 J

Crest factor

3:1

Waveform

Sine

Output frequency regulation

50/60 Hz

Surge protection

Yes

Audible alarm(s)

Yes

Number of output phases

1

Output power capacity

10 kVA

Output power

10000 W

Input operation voltage (max)

476 V

Efficiency

94.6%

Output voltage Total Harmonic Distortion (THD)

3%

Noise level

55 dB

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

22873.91

Operating relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating altitude

0 - 3000 m

Storage relative humidity (H-H)

0 - 95%

Non-operating altitude

0 - 15000 m

Nominal output voltage

230 V

Nominal input voltage

230 V

Packaging content

Web/SNMP Management Card

Interface

RJ-45 10/100 Base-T

Cables included

USB cable

Quick installation guide

Yes

Rack mount kit

Yes

Bracket

Yes

Temperature sensor

Yes

Package width

600 mm

Package depth

1000 mm

Package height

461 mm

Package weight

130 kg

Software CD

Yes

Warranty card

Yes

Number of output IEC jumpers

3

Serial interface

Yes

SmartSlot

Yes

AC outlet types

C13 coupler, C19 coupler

Power plug

Hardwire

AC outlets quantity

10 AC outlet(s)

Serial interface type

RJ-45

Sustainability certificates

ENERGY STAR

Weight

111.8 kg

Depth

715 mm

Height

2.63 mm

Width

432 mm

UPS-Management

Yes

Rackable

Yes
