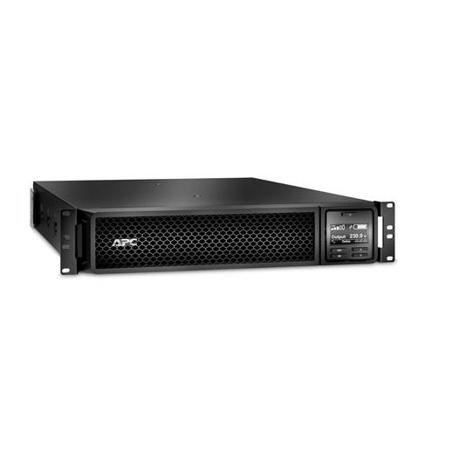

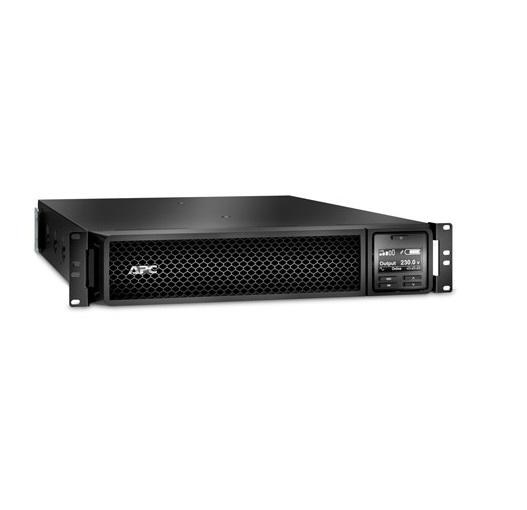

UPS APC Smart-UPS SRT online dubla-conversie 2200VA / 1980W 8 conectori C13 2 conectori C19 extended runtime, baterie RBC31 rackabil, placa retea inclusa,3 ani garantie echipament si 2 ani garantie baterie

APC Smart-UPS SRT 2200VA RM 230V Network Card

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, USB cable, Warranty card



Output power capacity

1.98kWatts / 2.2kVA

Rack Height

2U

Output Connections

(8) IEC 60320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(2) IEC 60320 C19 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P

Cord Length

2.4meters



Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Built-in bypass

Battery capacity

367 VAh

Number of batteries supported

1

Battery recharge time

3 h

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Certification

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

International Protection (IP) code

IP20

LED indicators

Yes

Display type

LCD

Cable length

2.44 m

Form factor

Rackmount

Rack capacity

2U

Waveform

Sine

Output voltage Total Harmonic Distortion (THD)

2%

Audible alarm(s)

Yes

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Emergency Power Off (EPO)

Yes

Output power capacity

2.2 kVA

Input operation voltage (min)

160 V

Output power

1980 W

Surge energy rating

340 J

UPS topology

Double-conversion (Online)

Input operation voltage (max)

275 V

Input frequency

40 - 70 Hz

Crest factor

3:1

Noise level

55 dB

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

3656.79

Operating relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Storage relative humidity (H-H)

0 - 95%

Non-operating altitude

0 - 15000 m

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 50 °C

Output voltage

230 V

Package weight

3.4 kg

Package depth

810 mm

Package height

246 mm

Package width

599 mm

Number of output IEC jumpers

2

SmartSlot

Yes

Serial interface

Yes

AC outlet types

C13 coupler, C19 coupler

AC outlets quantity

12 AC outlet(s)

Serial interface type

RJ-45

Sustainability certificates

ENERGY STAR, Green Premium

Weight

2.5 kg

Width

432 mm

Depth

58.4 mm

Height

8.5 mm

UPS-Management

Yes

Rackable

Yes
